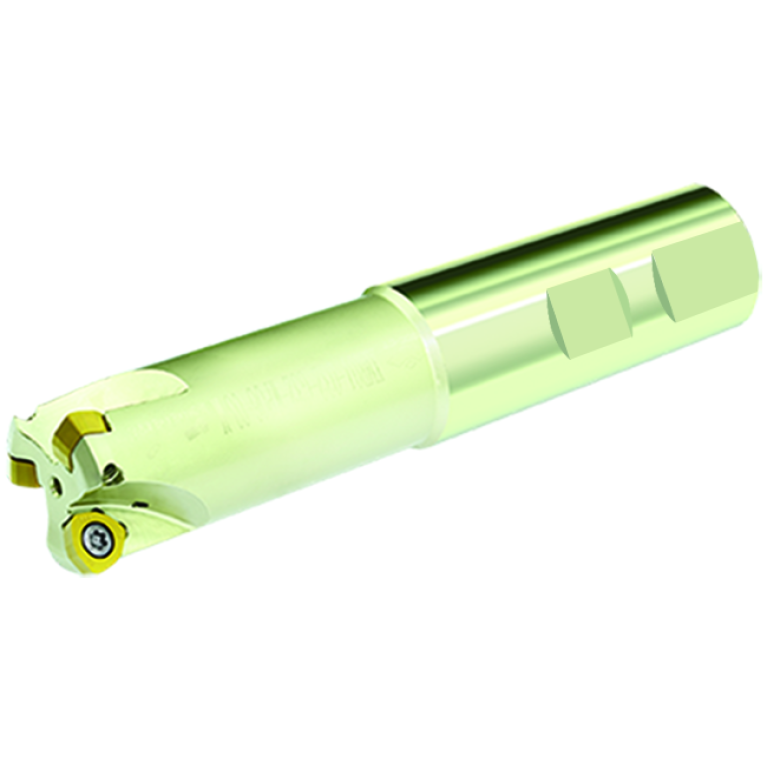

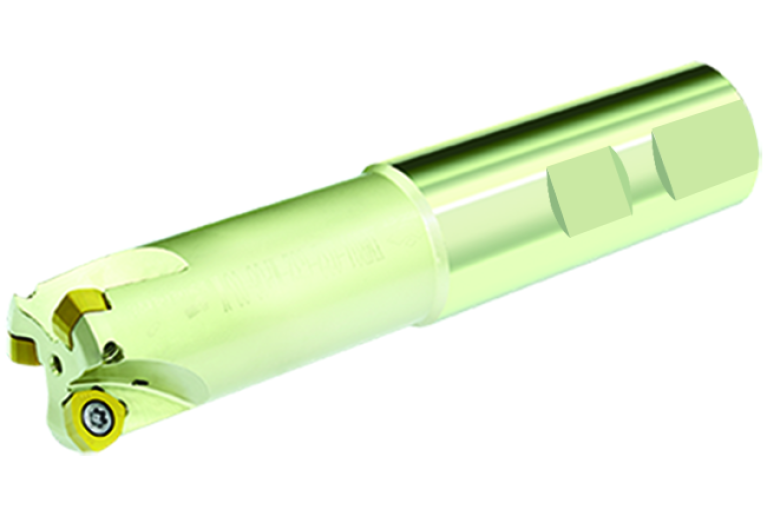

XMR01-040-XP32-WP06-03C-M

Артикул: XMR01-040-XP32-WP06-03C-M

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

APMX Depth of cut maximum

1.5 mm

B3A Inscribed circle diameter Pos. A

9.525 mm

BI Block index

BLDA Tool style code Position A

C1A Insert thickness Pos. A

4.2 mm

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

1.5 mm

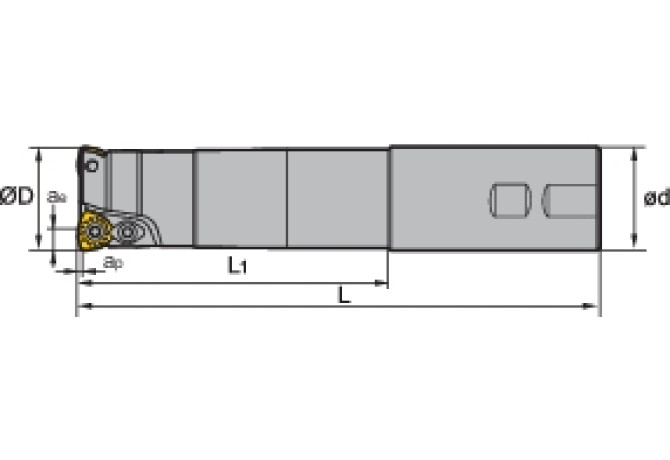

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state

SF - Made to order

DIN

ZYL03201015

FamilyProducts

High feed mill

HAND Cutting direction

R - Right

ID Identifying order number

XMR01-040-XP32-WP06-03C-M

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

LOC-01 BI Block index

LOC-01 MIID Master insert identification

WPGT060415ZSR-PM

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

ZCC-WP0604

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

MIID Master insert identification

WPGT060415ZSR-PM

OAL Overall length

150 mm

Working process

FDR - Rotary milling, turn milling,FFO - Die milling,FPL - Face milling,FRU - Round moulding,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.9 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
