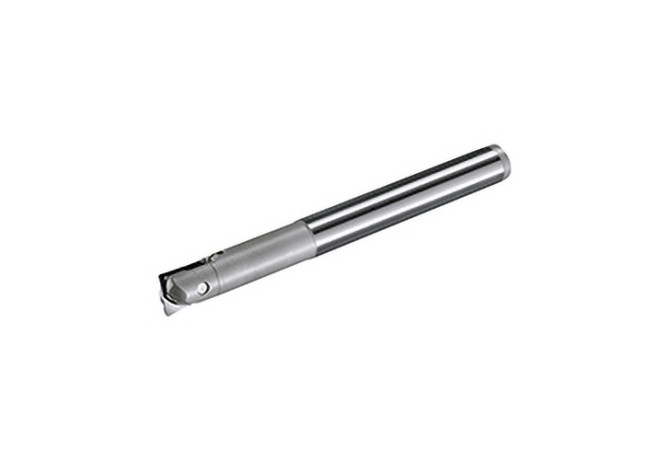

Главная Каталог продукции Toolunited 11 307-13 - Die and mold end mill 12V9U016120T3R00

12V9U016120T3R00

Артикул: 3078902

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

ZYL01600105

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Copy End Mill 12V9U...T

HAND Cutting direction

R - Right

ID Technical product number

3078902

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

307-13 - Die and mold end mill

LF Functional length

200 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

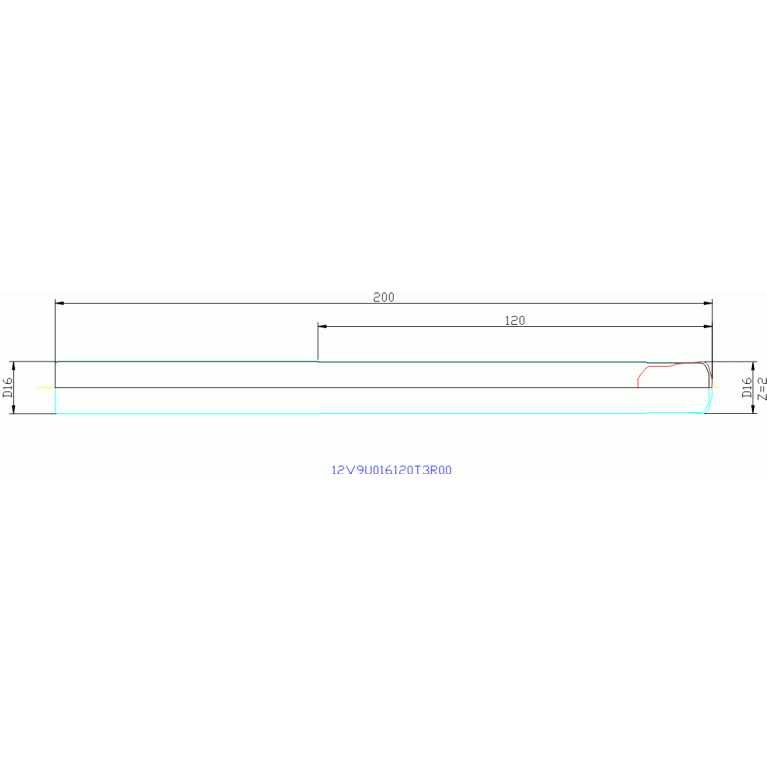

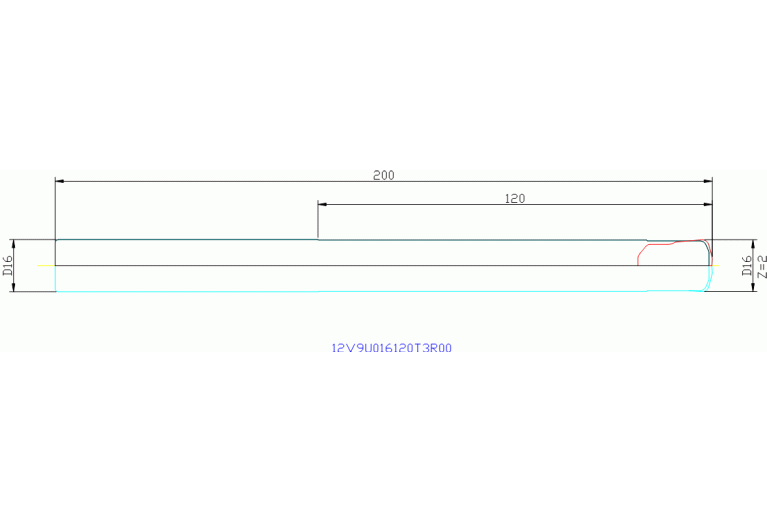

12V9U016120T3R00

OAL Overall length

200 mm

Working process

No working processes available

ZEFF Face effective cutting edge count
