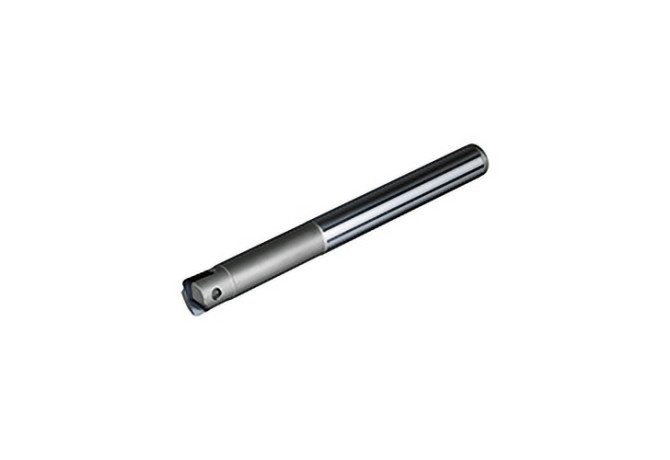

Главная Каталог продукции Toolunited 11 307-13 - Die and mold end mill 12U9W025070T5R00

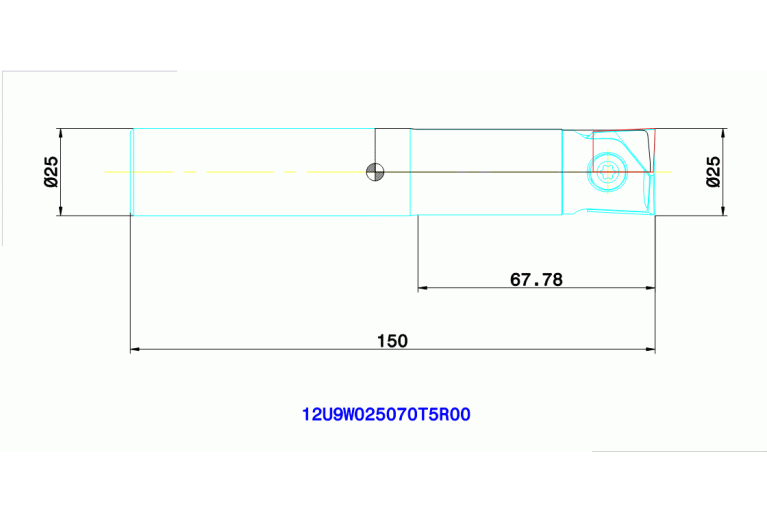

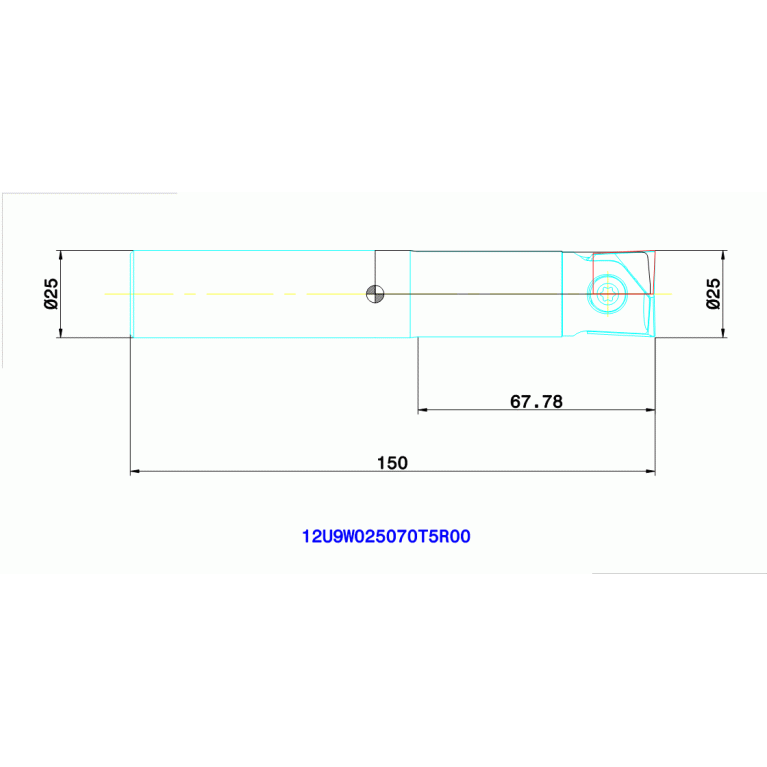

12U9W025070T5R00

Артикул: 3031652

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

Delivery state

NL - Discontinued

DIN

ZYL02500115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Copy Mill cylindrical 12U9...

HAND Cutting direction

R - Right

ID Technical product number

3031652

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

307-13 - Die and mold end mill

LF Functional length

150 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

12U9W025070T5R00

OAL Overall length

150 mm

Working process

No working processes available

WT Weight of item

0.565 kg

ZEFF Face effective cutting edge count
