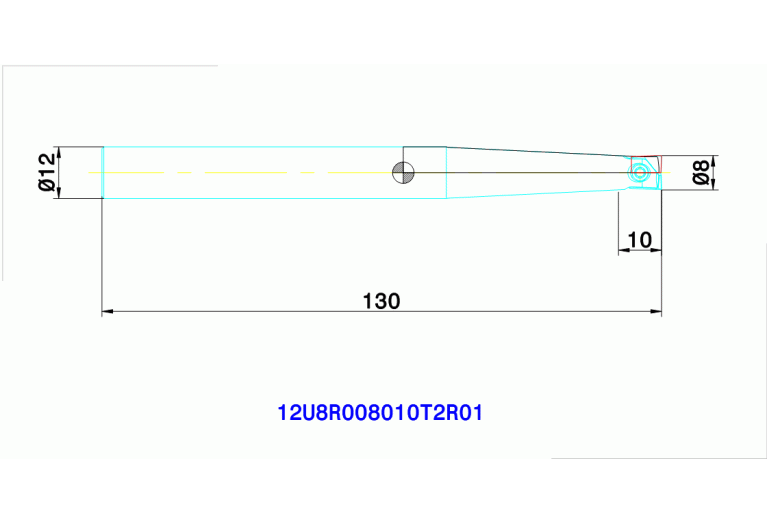

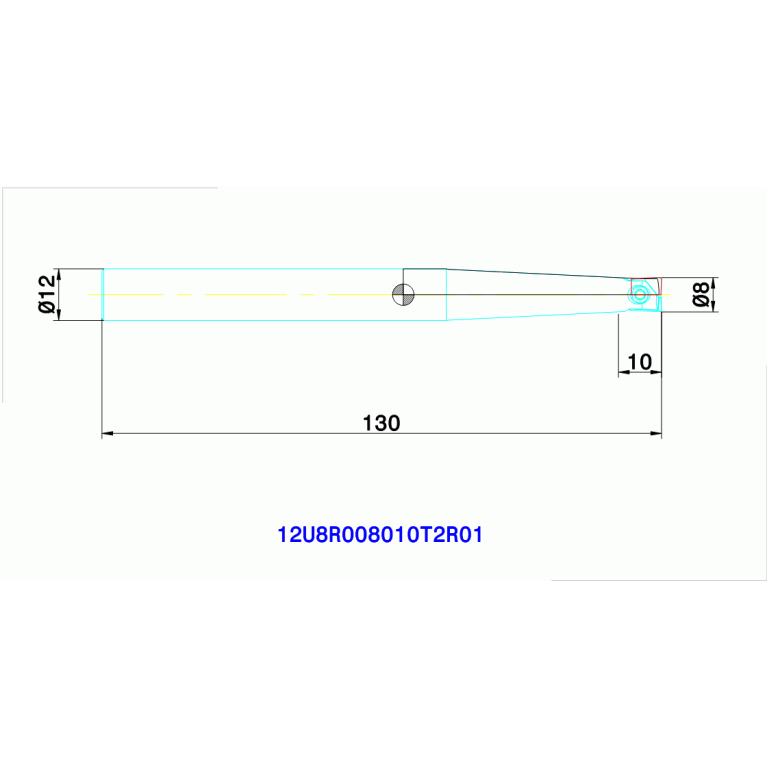

12U8R008010T2R01

Артикул: 3031656

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state

NL - Discontinued

DIN

ZYL01200115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Copy Mill conical 12U8...

HAND Cutting direction

R - Right

ID Technical product number

3031656

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

307-13 - Die and mold end mill

LF Functional length

130 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

12U8R008010T2R01

OAL Overall length

130 mm

Working process

No working processes available

WT Weight of item

0.01 kg

ZEFF Face effective cutting edge count
