Главная Каталог продукции Toolunited 11 307-07 - Non-centre cutting multiple rows end mill APX3KUR202FA20M18A10

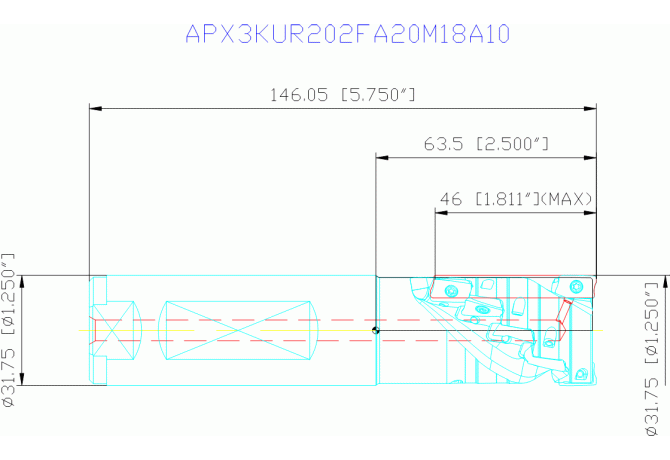

APX3KUR202FA20M18A10

APX3KUR202FA20M18A10 APX3KUR202FA20M18A10

APX3KUR202FA20M18A10

Mitsubishi Materials
Артикул: 10589953
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
85 Degree
A1B Cutting edge angle major Pos. B
85 Degree
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
11 Degree
APMX Depth of cut maximum
45.9994 mm
B1A Cutting edge length Pos. A
10 mm
B1B Cutting edge length Pos. B
10 mm
B2A Insert width Pos. A
6.6 mm
B2B Insert width Pos. B
6.6 mm
B3A Inscribed circle diameter Pos. A
6.6 mm
B3B Inscribed circle diameter Pos. B
6.6 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
3.6 mm
C1B Insert thickness Pos. B
3.6 mm
CCONMS Connection count machine side
2
CICT Cutting item count
10
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.2 mm
D1B Corner radius Pos. B
0.2 mm
D6A Wiper edge length Pos. A
1.8 mm
DC Cutting diameter
31.75 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL12501035
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
10589953
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
ZYL10S1250$$$$
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
AOGT123602PEFR-GM
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
ZYL10S1250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12501035
LPR Protruding length
63.5 mm
LS Shank length
82.55 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
APX3KUR202FA20M18A10
OAL Overall length
146.05 mm
RMPX Ramping angle maximum
1.5 Degree
Working process
No working processes available
WT Weight of item
0.75 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
