Главная Каталог продукции Toolunited 11 307-07 - Non-centre cutting multiple rows end mill APX3KUR162FA16M14A08

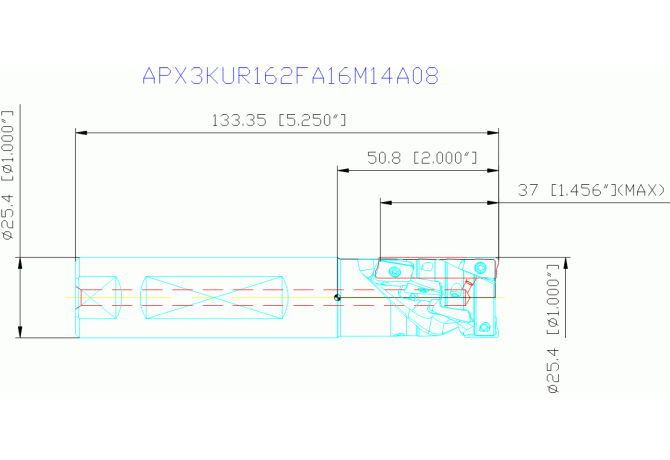

APX3KUR162FA16M14A08

APX3KUR162FA16M14A08

APX3KUR162FA16M14A08

APX3KUR162FA16M14A08

APX3KUR162FA16M14A08

Mitsubishi Materials

Артикул: 10589939

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

85 Degree

A1B Cutting edge angle major Pos. B

85 Degree

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

11 Degree

APMX Depth of cut maximum

36.9824 mm

B1A Cutting edge length Pos. A

10 mm

B1B Cutting edge length Pos. B

10 mm

B2A Insert width Pos. A

6.6 mm

B2B Insert width Pos. B

6.6 mm

B3A Inscribed circle diameter Pos. A

6.6 mm

B3B Inscribed circle diameter Pos. B

6.6 mm

BLDA Tool style code Position A

99

BLDB Tool style code Position B

99

C1A Insert thickness Pos. A

3.6 mm

C1B Insert thickness Pos. B

3.6 mm

CCONMS Connection count machine side

2

CICT Cutting item count

8

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.2 mm

D1B Corner radius Pos. B

0.2 mm

D6A Wiper edge length Pos. A

1.8 mm

DC Cutting diameter

25.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL10001035

FamilyProducts

end mills

HAND Cutting direction

R - Right

ID Technical product number

10589939

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

0

ISISO B Indicator for ISO cutting plate Pos.B

0

ISO

ZYL10S1000$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

AOGT123602PEFR-GM

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-03 CCFMS Connection code form

10

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 ISO

ZYL10S1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10001035

LPR Protruding length

50.8 mm

LS Shank length

82.55 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

APX3KUR162FA16M14A08

OAL Overall length

133.35 mm

RMPX Ramping angle maximum

2.1 Degree

Working process

No working processes available

WT Weight of item

0.43 kg

ZEFF Face effective cutting edge count

2

ZEFP Peripheral effective cutting edge count

2
