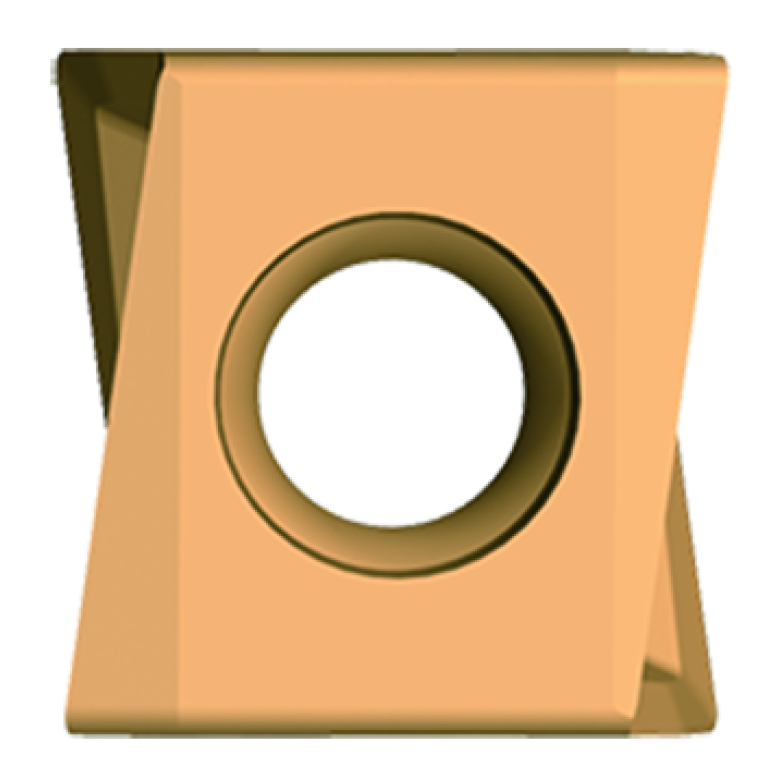

LNKT160708PNR-GL YB9320

Артикул: LNKT160708PNR-GL YB9320

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COATN Coating

TiAlN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

5.5 mm

Delivery state

LH - Stocked

DIN

ZCC-LNKT160708PNR-GL

EPSR Insert included angle

90 Degree

FamilyProducts

LN** milling insert

GRDMFG Grade manufacturers designation

YB9320

GRDPRIO Standard designation of the grade main application

M20-M40

IC Inscribed circle diameter

15 mm

ID Identifying order number

LNKT160708PNR-GL YB9320

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

16.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

ZCC-LNKT160708PNR-GL

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

7.35 mm

S1 Insert thickness total

7.35 mm

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

15 mm

Working process

No working processes available
