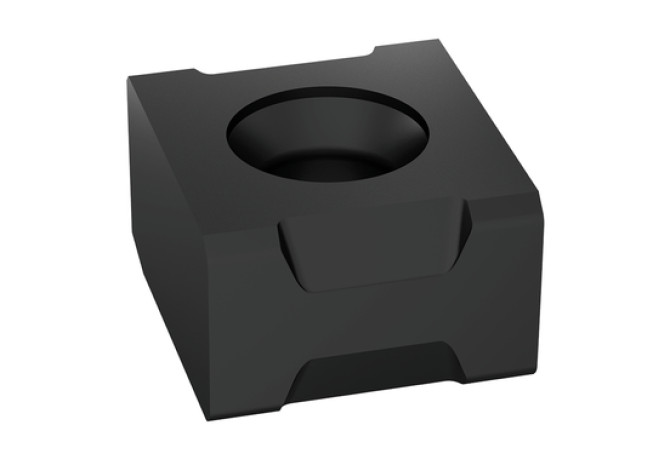

Главная Каталог продукции Toolunited 11 201-04 - Rectangular insert 51045520

51045520

Артикул: 51045520

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-Q

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTCK215

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

4.27 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

90 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-K15

IC Inscribed circle diameter

10 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

11 mm

Name Identifying order number

51045520

RE Corner radius

0.5 mm

S Insert thickness

6.35 mm

TCINS Tolerance class insert

Working process

No working processes available
