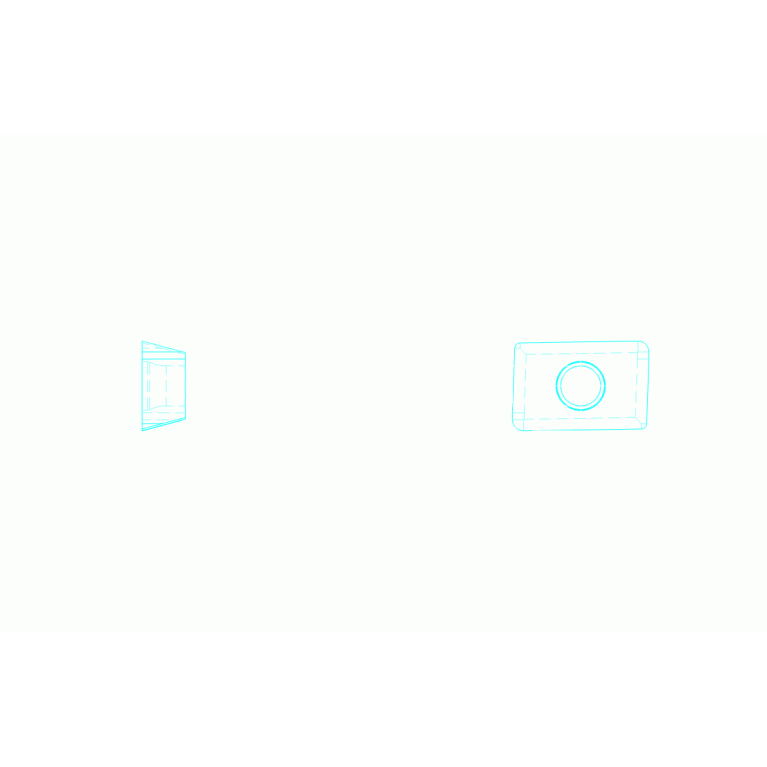

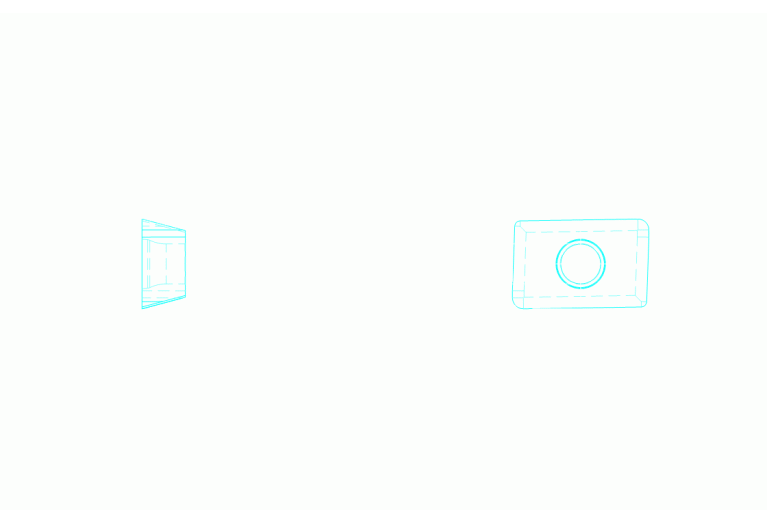

Главная Каталог продукции Toolunited 11 201-04 - Rectangular insert 51042420

51042420

Артикул: 51042420

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

0.8 mm

CBMD Chip breaker manufacturers designation

-33

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTPM240

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

90 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRDPRIO Standard designation of the grade main application

HC-M40

IC Inscribed circle diameter

9.52 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-04 - Rectangular insert

L Cutting edge length

15 mm

Name Identifying order number

51042420

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
