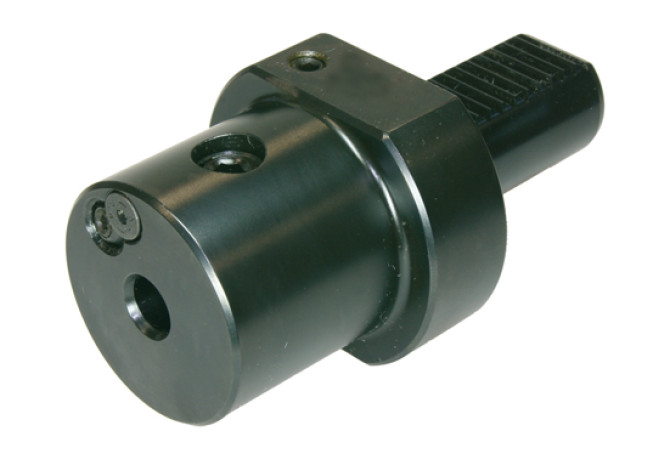

Главная Каталог продукции Toolunited 11 401-02 - Converter, stationary 83269318

83269318

Артикул: 83269318

В наличии

В корзину

Описание

Характеристики

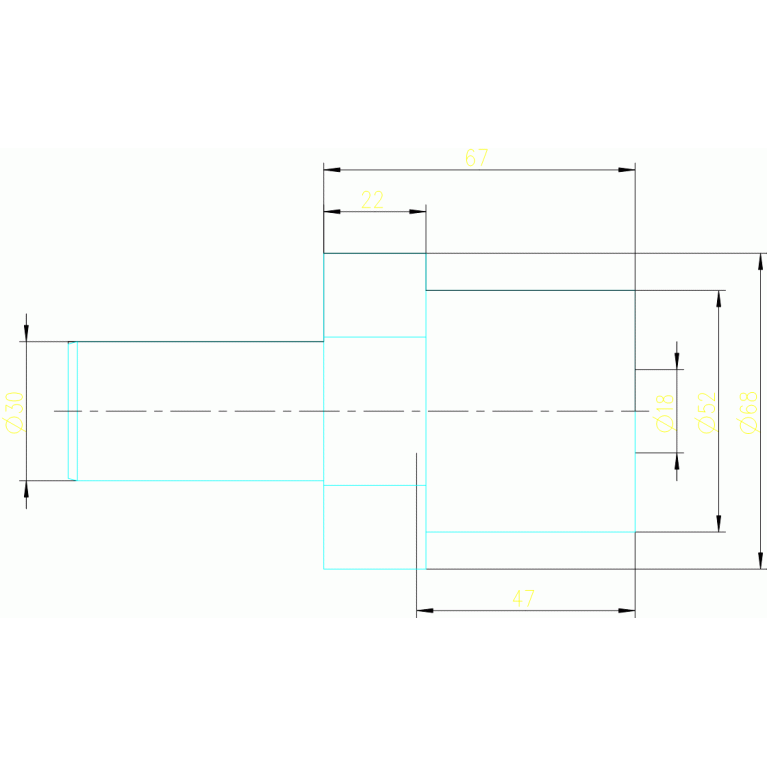

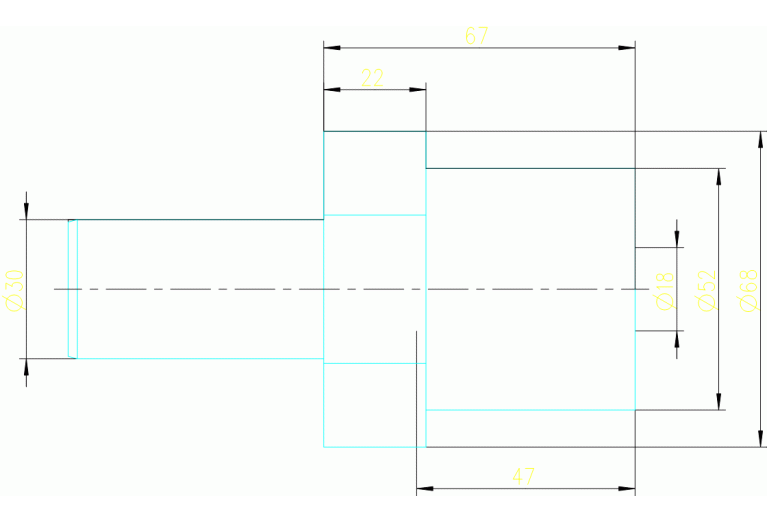

BD Body diameter

52 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0180

DCONWS Diameter

18 mm

Delivery state valid from

10/1/2021

DF Flange diameter

68 mm

DIN

ZYV03000115

FamilyProducts

ZYLINDERAUFNAHME

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0180

LOC-01 DCONWS Diameter

18 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01805315

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0300

LOC-03 DCONMS Diameter

30 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV03000115

LPR Protruding length

67 mm

Name Identifying order number

83269318

STDNO Standard

ISO 10889
