83269314
83269314
Артикул:
83269314
В наличии
Характеристики

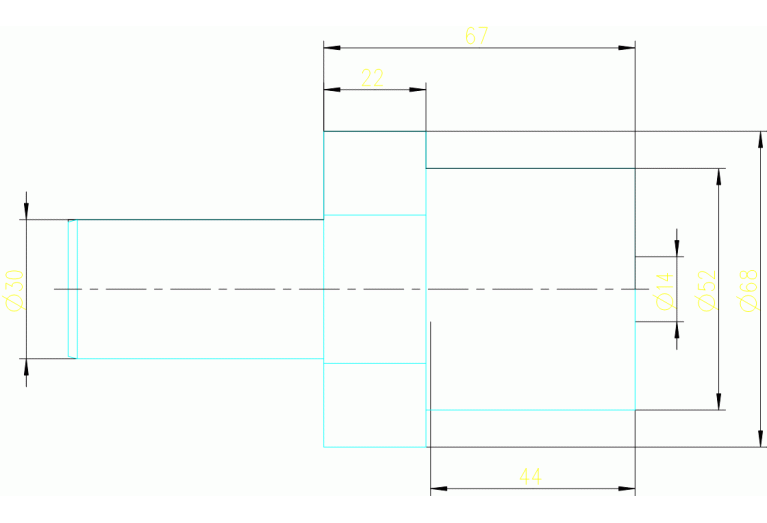

BD Body diameter
52 mm
CCFWS Connection code form
53
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0140
DCONWS Diameter
14 mm
Delivery state valid from
10/1/2021
DF Flange diameter
68 mm
DIN
ZYV03000115
FamilyProducts
ZYLINDERAUFNAHME
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary
LOC-01 CCFWS Connection code form
53
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0140
LOC-01 DCONWS Diameter
14 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01405315
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0300
LOC-03 DCONMS Diameter
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV03000115
LPR Protruding length
67 mm
Name Identifying order number
83269314
STDNO Standard
ISO 10889
