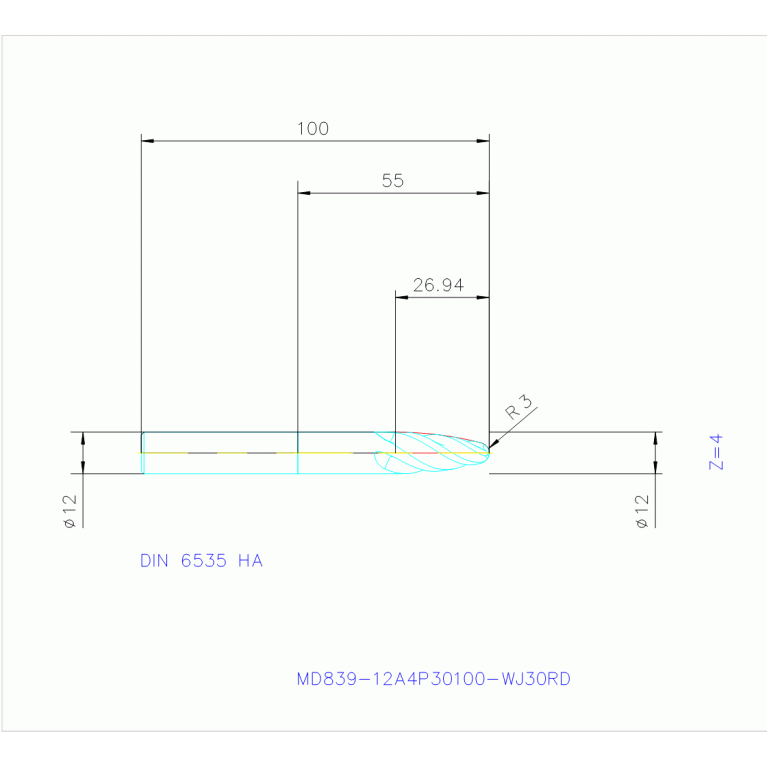

MD839-12A4P30100-WJ30RD

MD839-12A4P30100-WJ30RD MD839-12A4P30100-WJ30RD MD839-12A4P30100-WJ30RD MD839-12A4P30100-WJ30RD

MD839-12A4P30100-WJ30RD

Walter
Артикул: 7877285
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
26.94 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
AlTiN + ZrN
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
6 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
12 mm
Delivery state valid from
12/1/2023
DIN
ZYL01200105
FamilyProducts
Solid carbide Circle Segment Cutter MD839
FHA Flute helix angle
30 Degree
FHH Flute helix hand
R - Hand of helix right
GAMF Rake angle radial
5.5 Degree
GAMP Rake angle axial
1.5 Degree
GRDMFG Grade manufacturers designation
WJ30RD
HAND Cutting direction
R - Right
ID Technical product number
7877285
Interface codes
J6 / J61
ISO
ZYL01G1200h$05
ISYC Subclass
303-07 - Die end mill
LF Functional length
100 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$05
LOC-03 ISO
ZYL01G1200h$05
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200105
LPR Protruding length
47 mm
LS Shank length
45 mm
Materials
P,K
Name Identifying order number
MD839-12A4P30100-WJ30RD
OAL Overall length
100 mm
PRFA Profile included angle
14.286 Degree
PRFRAD Profile radius 1
3 mm
RPMX Rotational speed maximum
80000 1/min
STDLET Standard letter to the standard number
HA
STDNO Standard
PWZ-NORM
TCDCONMS ISO-tolerance class shank diameter
h5
Working process
FFO - Die milling
WT Weight of item
0.136 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
