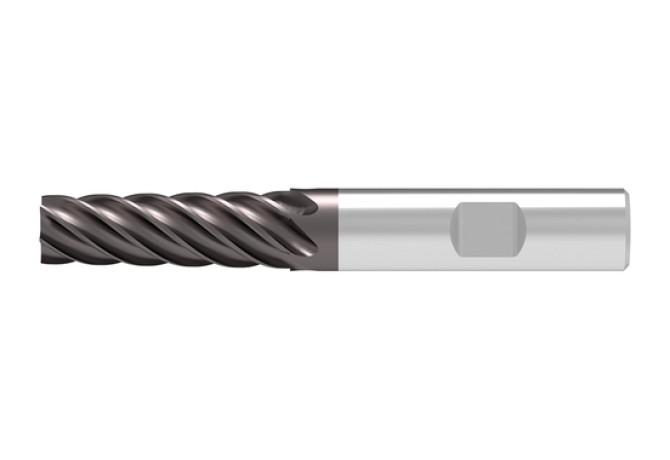

Главная Каталог продукции Toolunited 11 303-07 - Die end mill 52291211

52291211

Артикул: 52291211

В наличии

В корзину

Описание

Характеристики

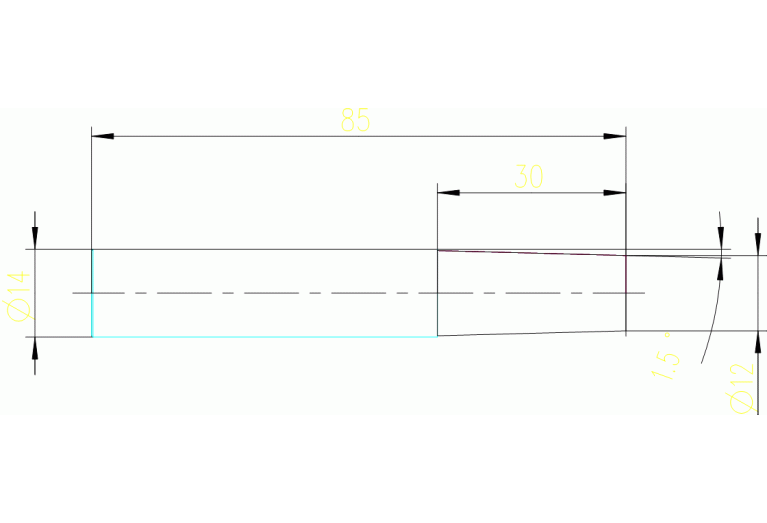

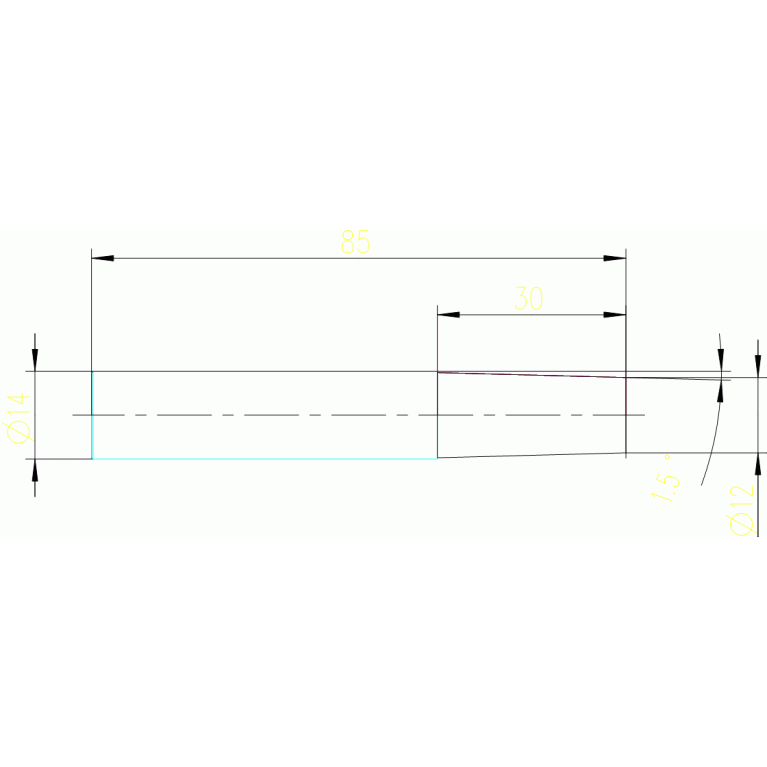

APMX Depth of cut maximum

30 mm

COATN Coating

Ti1000

COMPC Company code

CE - Ceratizit

DC Cutting diameter

12 mm

Delivery state valid from

10/1/2021

DIN

ZYL01401005

FamilyProducts

VHM GESENKFRÄSER

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

15 Degree

Interface codes

J6 /

ISYC Subclass

303-07 - Die end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01401005

LPR Protruding length

36 mm

LS Shank length

45 mm

Name Identifying order number

52291211

OAL Overall length

85 mm

PRFA Profile included angle

3 Degree

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
