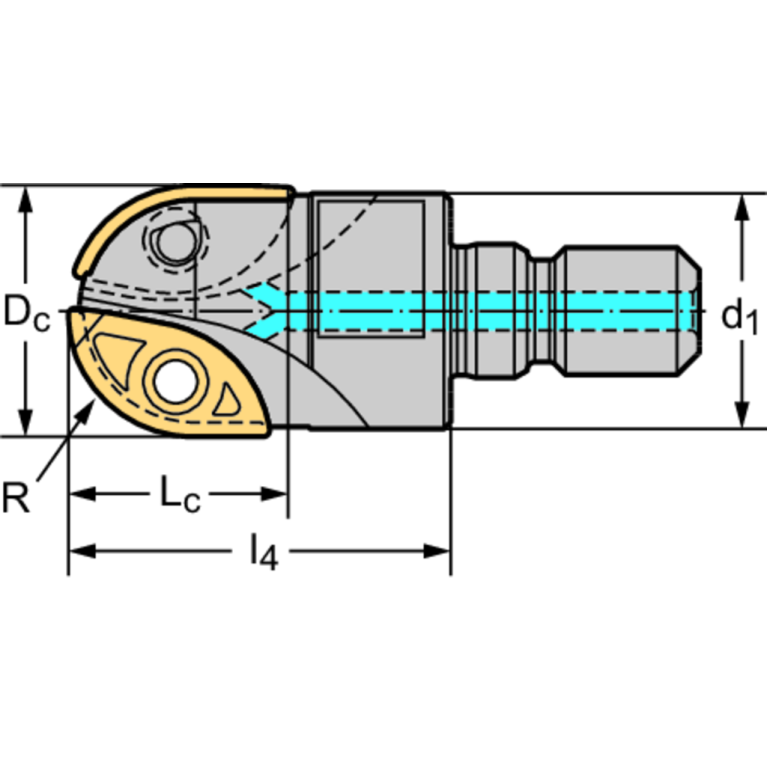

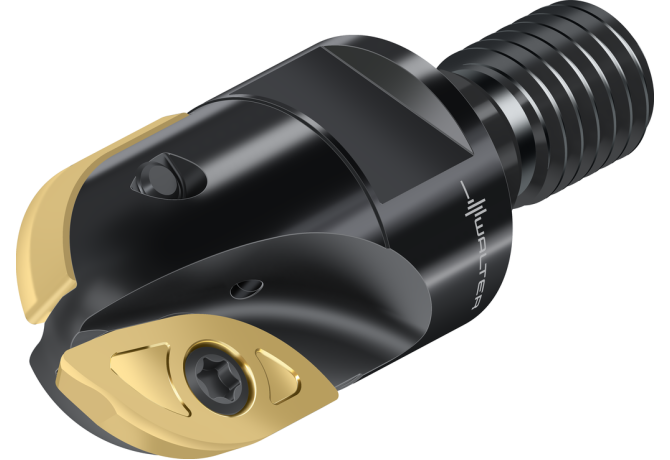

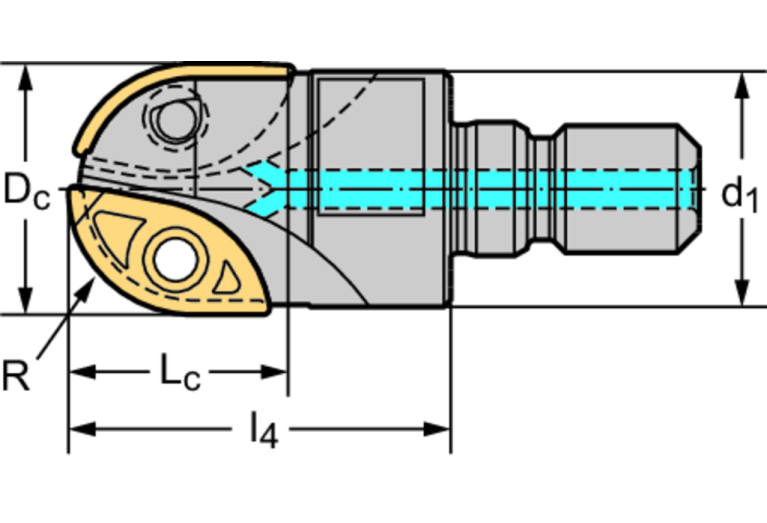

Главная Каталог продукции Toolunited 11 307-12 - Angular ball-nosed end mill F2339.TC16.030.Z02.24

F2339.TC16.030.Z02.24

Артикул: 7785464

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

24 mm

BD Body diameter

27.4 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

30 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAW01600215

FamilyProducts

Copy milling cutters F2339

HAND Cutting direction

R - Right

ID Technical product number

7785464

Interface codes

J6 / J61

ISO

SAW02A0160$$$$

ISYC Subclass

307-12 - Angular ball-nosed end mill

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0160

LOC-03 DCONMS Diameter

28 mm

LOC-03 ISO

SAW02A0160$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW01600215

LPR Protruding length

40 mm

LS Shank length

24 mm

LU Usable length

40 mm

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

F2339.TC16.030.Z02.24

OAL Overall length

64 mm

RPMX Rotational speed maximum

19600 1/min

Working process

FFO - Die milling

WT Weight of item

0.123 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
