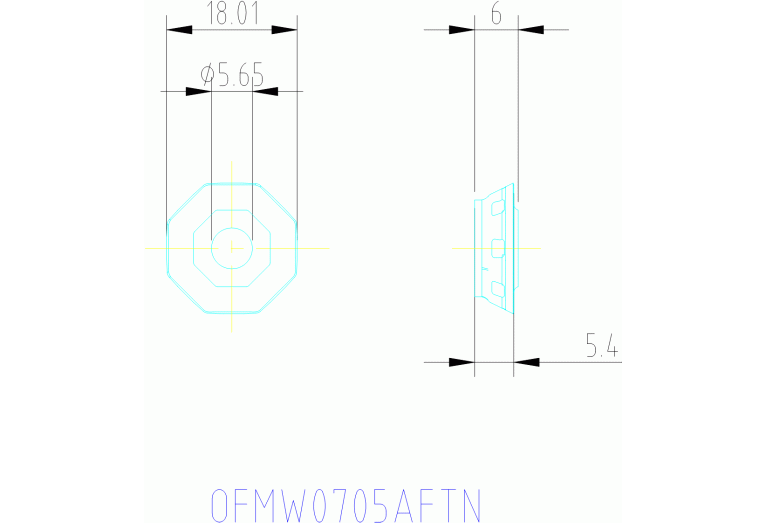

OFMW0705AFTN IN1030

Артикул: 5880115

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

26 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiCN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.65 mm

Delivery state

LH - Stocked

DIN

OF0705 3N

EPSR Insert included angle

135 Degree

FamilyProducts

insert, eight-edged, neutral geometry with K-Land for heavy-duty cuts

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

K15-K30

GRDMFG Grade manufacturers designation

IN1030

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

18.01 mm

ID Technical product number

5880115

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

6.68 mm

LE Cutting edge effective length

4.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OF0705 3N

Name Identifying order number

OFMW0705AFTN IN1030

S Insert thickness

5.4 mm

S1 Insert thickness total

5.4 mm

STDDES Standard designation

OFMW0705AF

TCINS Tolerance class insert

Working process

FNB - Slotting,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
