Главная Каталог продукции Toolunited 11 201-09 - Octogonal insert OFMT0705AFR-HR IN2040

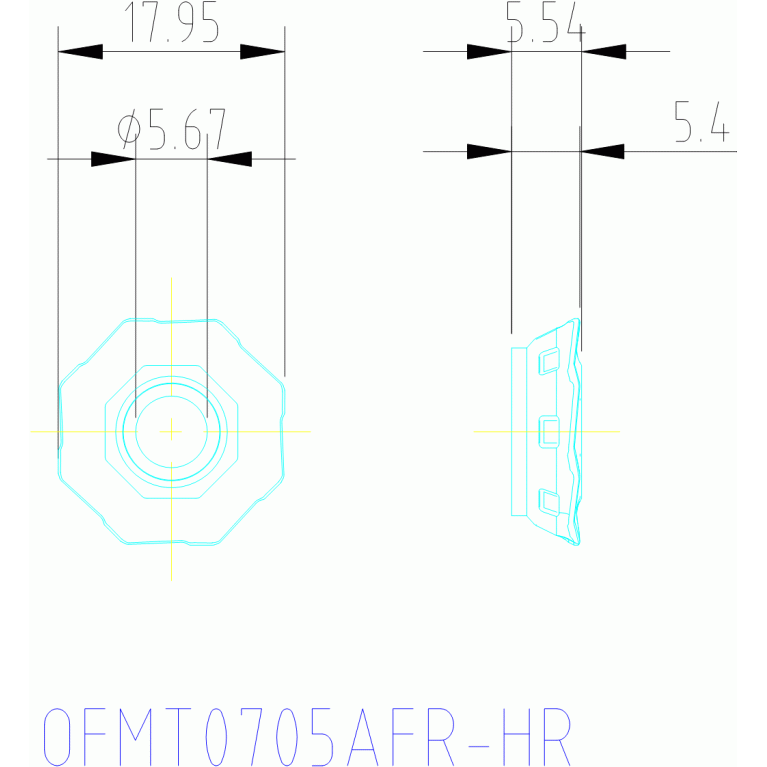

OFMT0705AFR-HR IN2040

Артикул: 5880183

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

26 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.67 mm

Delivery state

SF - Made to order

DIN

OF0705 3R

EPSR Insert included angle

135 Degree

FamilyProducts

insert, eight-edged, high-positive geometry

GRDMFG Grade manufacturers designation

IN2040

GRDPRIO Standard designation of the grade main application

P15-P35

IC Inscribed circle diameter

17.95 mm

ID Technical product number

5880183

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

4.07 mm

LE Cutting edge effective length

4.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OF0705 3R

Name Identifying order number

OFMT0705AFR-HR IN2040

S Insert thickness

5.4 mm

S1 Insert thickness total

5.4 mm

STDDES Standard designation

OFMT0705AF

TCINS Tolerance class insert

Working process

FNB - Slotting,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
