Главная Каталог продукции Toolunited 11 201-09 - Octogonal insert OFCT0705AFFR-W IN1030

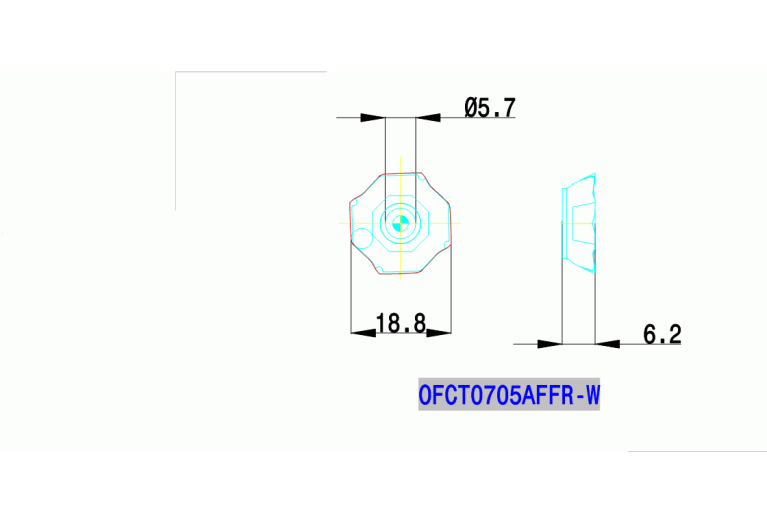

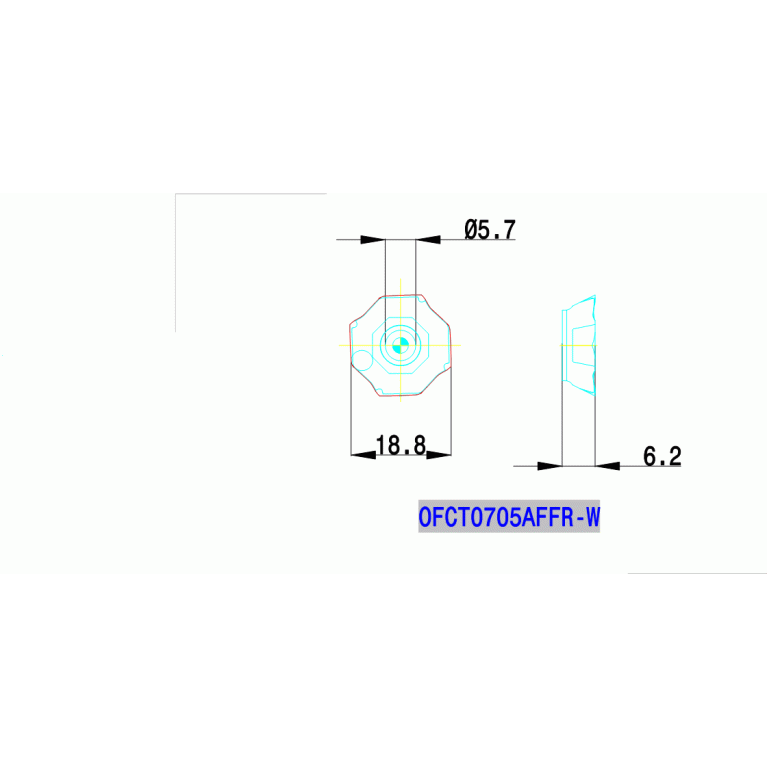

OFCT0705AFFR-W IN1030

Артикул: 5880077

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

26 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiCN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.72 mm

Delivery state

LH - Stocked

DIN

OF0705 3N

EPSR Insert included angle

135 Degree

FamilyProducts

insert, four-edged wiper finishing inserts

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

K15-K30

GRDMFG Grade manufacturers designation

IN1030

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

18.84 mm

ID Technical product number

5880077

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

5.46 mm

LE Cutting edge effective length

4.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OF0705 3N

Name Identifying order number

OFCT0705AFFR-W IN1030

S Insert thickness

6.16 mm

S1 Insert thickness total

6.16 mm

STDDES Standard designation

OFCT0705AF

TCINS Tolerance class insert

Working process

FNB - Slotting,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
