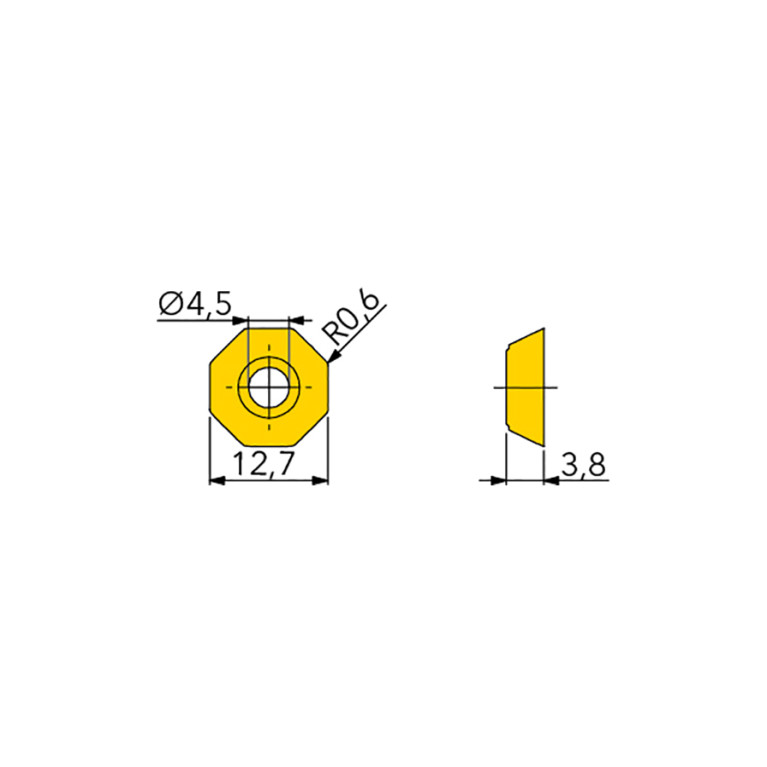

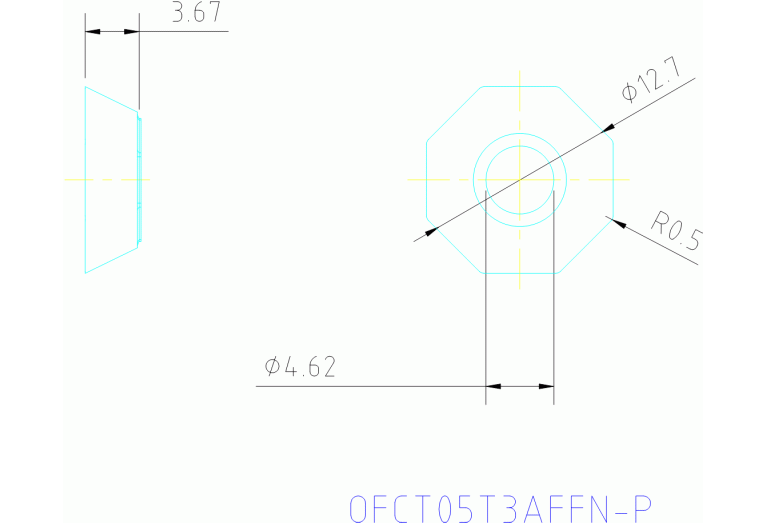

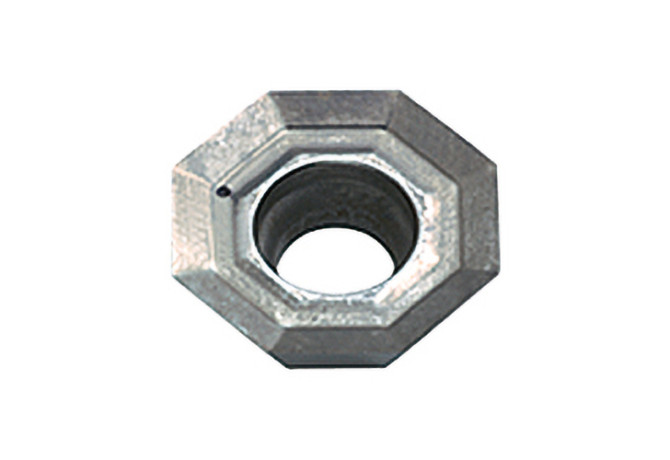

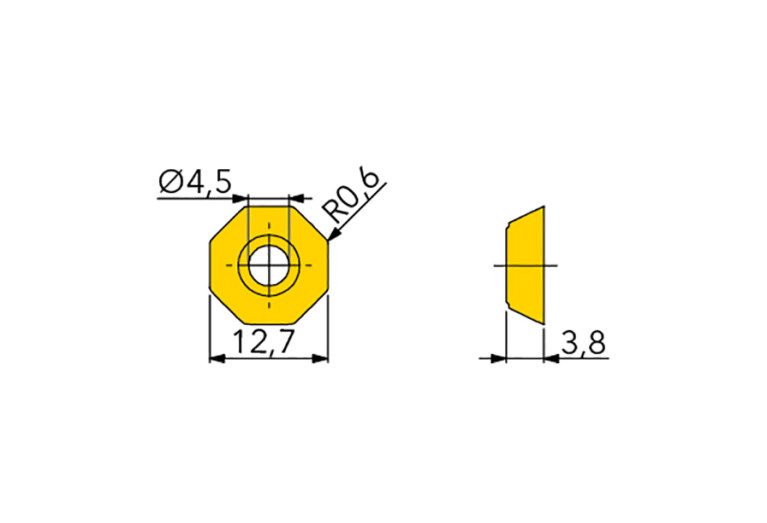

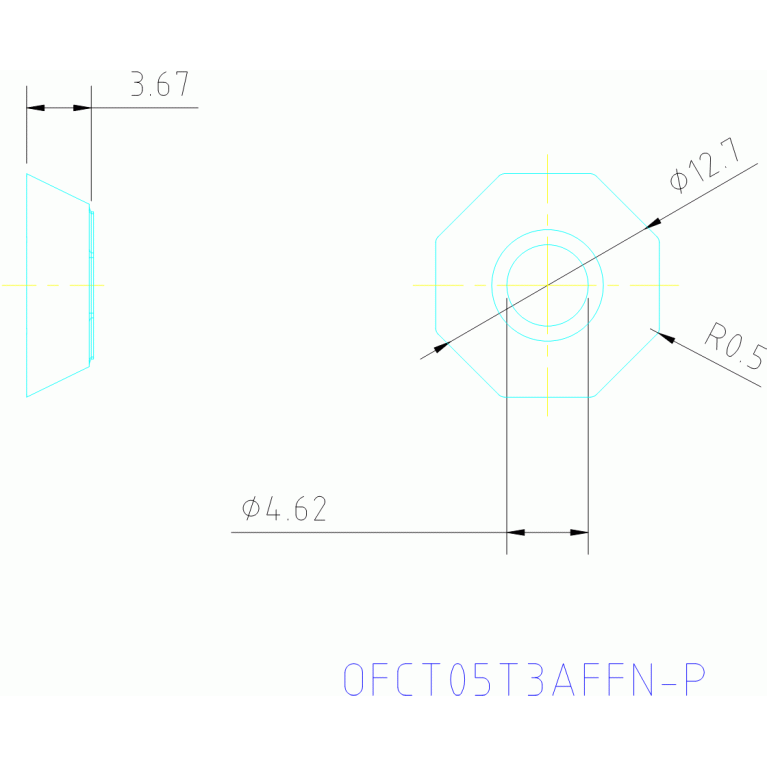

OFCT05T3AFFN-P IN30M

Артикул: 5880158

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

26 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.6 mm

Delivery state

LH - Stocked

DIN

OF05T3 3N

EPSR Insert included angle

135 Degree

FamilyProducts

insert, eight-edged (R+L), positive, polished and sharp-edged geometry for non-ferrous materials

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

K20-K50

GRDMFG Grade manufacturers designation

IN30M

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5880158

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

4.87 mm

LE Cutting edge effective length

3.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

OF05T3 3N

MIID Master insert identification

OFCT05T3AF IN30M

Name Identifying order number

OFCT05T3AFFN-P IN30M

S Insert thickness

3.97 mm

S1 Insert thickness total

3.8 mm

STDDES Standard designation

OFCT05T3AF

TCINS Tolerance class insert

Working process

FFO - Die milling,FNB - Slotting,FPL - Face milling,FPR - Profile milling,FZI - Circular milling
