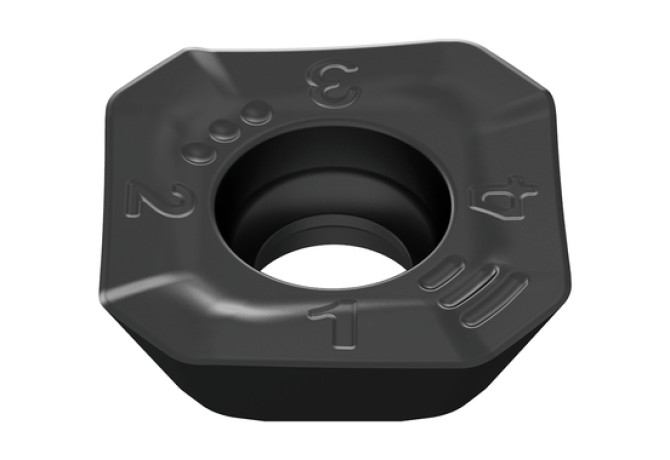

Главная Каталог продукции Toolunited 11 201-09 - Octogonal insert 51065520

51065520

Артикул: 51065520

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

BS Wiper edge length

2.25 mm

CBMD Chip breaker manufacturers designation

-R50

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTCK215

COMPC Company code

CE - Ceratizit

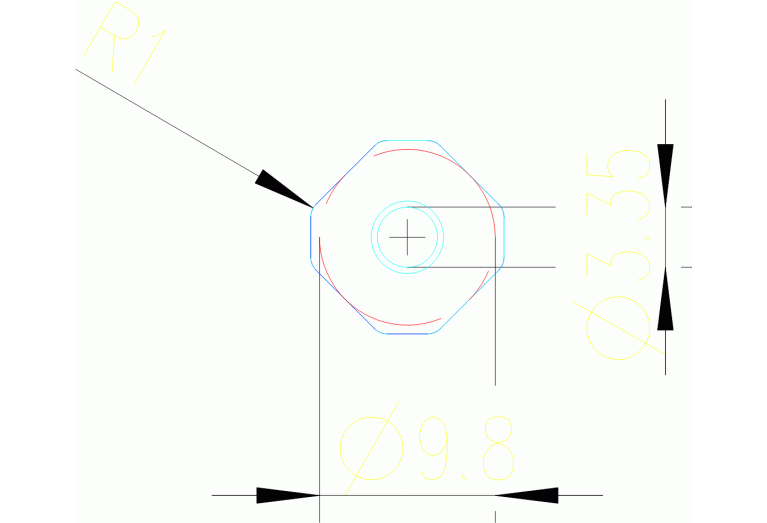

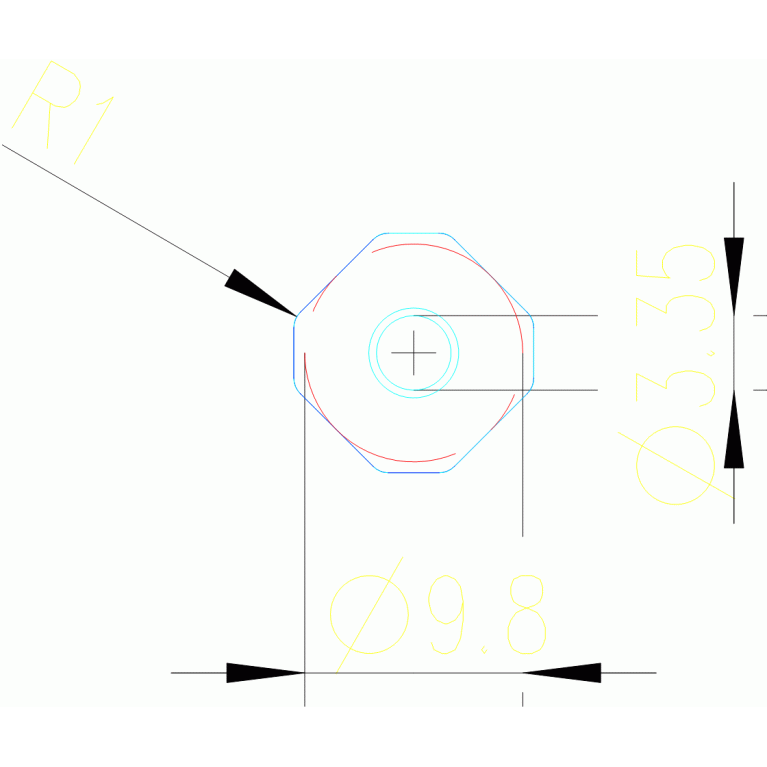

D1 Fixing hole diameter

3.35 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

90 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-K15

IC Inscribed circle diameter

9.8 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

9 mm

Name Identifying order number

51065520

RE Corner radius

1 mm

S Insert thickness

3.5 mm

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
