Главная Каталог продукции Toolunited 11 201-09 - Octogonal insert 5100341000

5100341000

Артикул: 5100341000

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

CBMD Chip breaker manufacturers designation

-M50

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTPM240

COMPC Company code

CE - Ceratizit

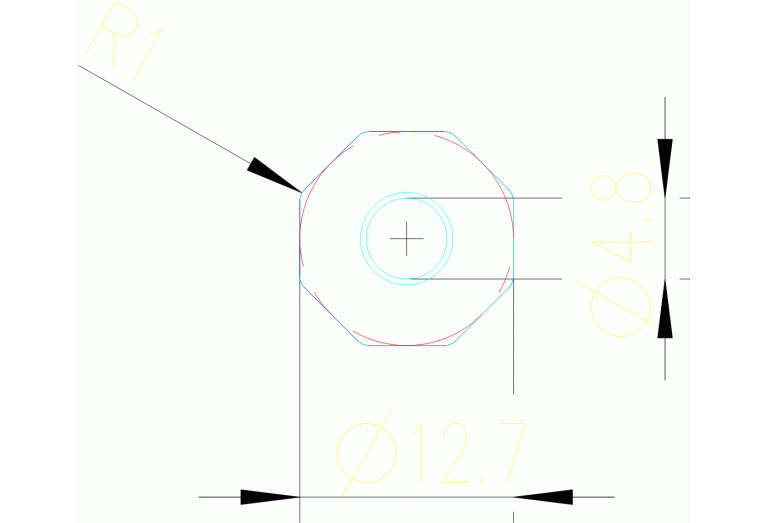

D1 Fixing hole diameter

4.8 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

135 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M40

GRDPRIO Standard designation of the grade main application

HC-P40

IC Inscribed circle diameter

12.7 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

4.5 mm

Name Identifying order number

5100341000

RE Corner radius

1 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
