Главная Каталог продукции Toolunited 11 201-09 - Octogonal insert 51003005

51003005

Артикул: 51003005

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

CBMD Chip breaker manufacturers designation

-M50

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTCP230

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

3.35 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

135 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRDPRIO Standard designation of the grade main application

HC-P30

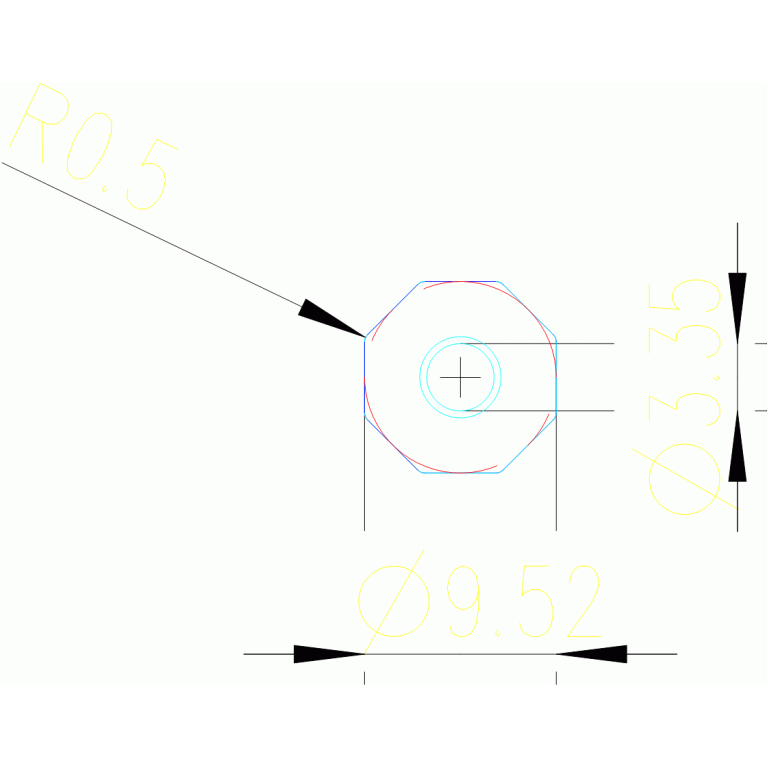

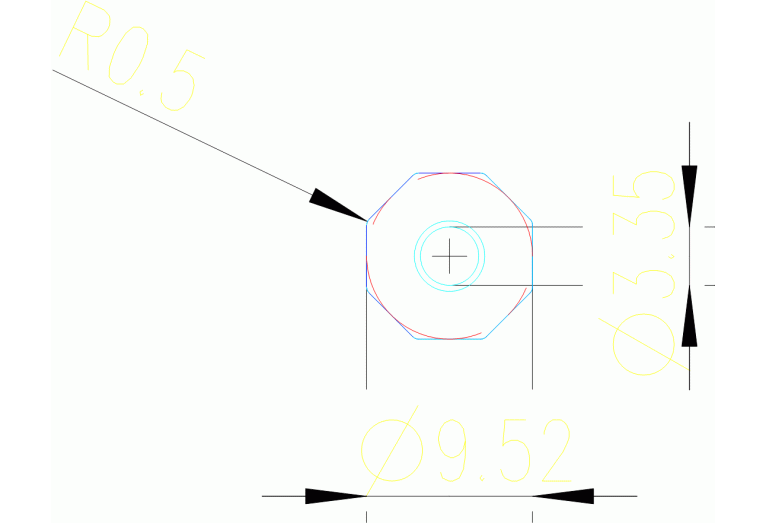

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

3.94 mm

Name Identifying order number

51003005

RE Corner radius

0.5 mm

S Insert thickness

3.18 mm

TCINS Tolerance class insert

Working process

No working processes available
