Главная Каталог продукции Toolunited 11 201-09 - Octogonal insert 51000108

51000108

Артикул: 51000108

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

3 Degree

BS Wiper edge length

2 mm

CBMD Chip breaker manufacturers designation

-F50

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTPP235

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

5.8 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

135 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRDPRIO Standard designation of the grade main application

HC-P35

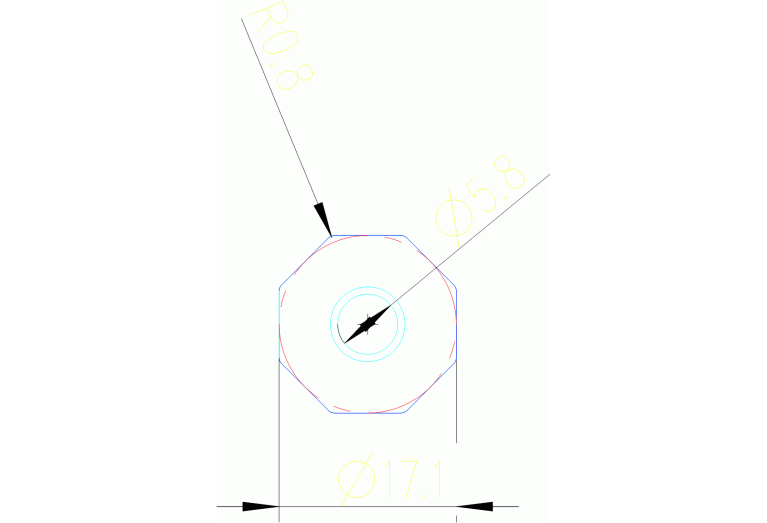

IC Inscribed circle diameter

17.1 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

6 mm

Name Identifying order number

51000108

RE Corner radius

0.8 mm

S Insert thickness

5.66 mm

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
