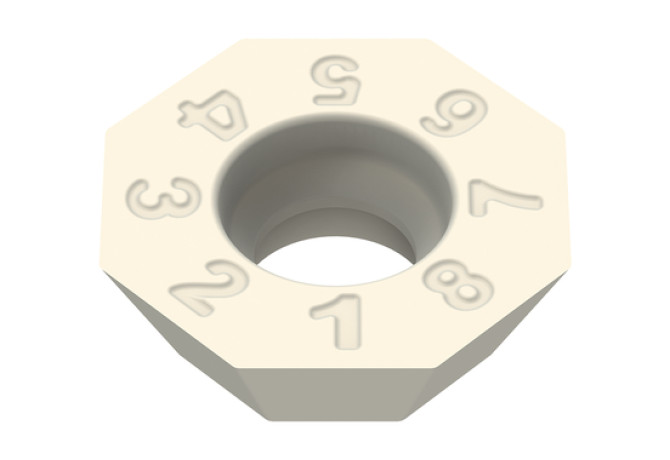

Главная Каталог продукции Toolunited 11 201-09 - Octogonal insert 50457904

50457904

Артикул: 50457904

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

25 Degree

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTC5235

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

3.35 mm

EPSR Insert included angle

135 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M35

GRDPRIO Standard designation of the grade main application

HC-S30

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-09 - Octogonal insert

L Cutting edge length

3.94 mm

Name Identifying order number

50457904

RE Corner radius

0.2 mm

S Insert thickness

3.18 mm

TCINS Tolerance class insert

Working process

No working processes available
