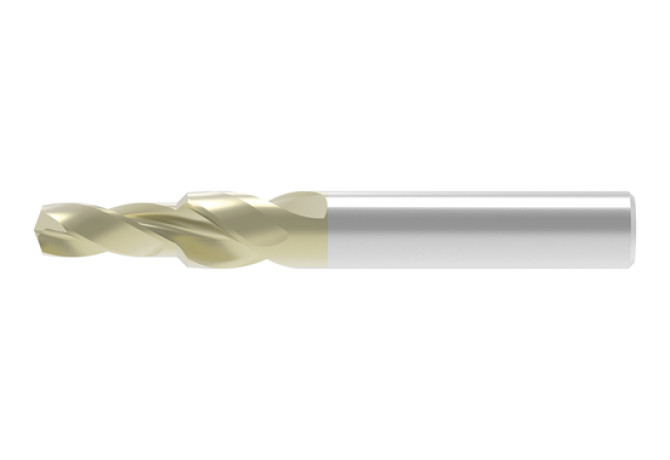

Главная Каталог продукции Toolunited 11 302-02 - Step drill 1078314000

1078314000

Артикул: 1078314000

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

COATN Coating

DPX74S

COMPC Company code

CE - Ceratizit

Delivery state valid from

10/1/2021

DIN

ZYL01800105

FamilyProducts

VHM STUFENBOHRER

FHH Flute helix hand

L - Hand of helix left

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-02 - Step drill

LCF Length chip flute

73 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01800105

LPR Protruding length

75 mm

LS Shank length

48 mm

LU Usable length

42 mm

Name Identifying order number

1078314000

NOF Flute count

NOS Step count

OAL Overall length

123 mm

SIG Point angle 1st step

140 Degree

Working process

No working processes available
