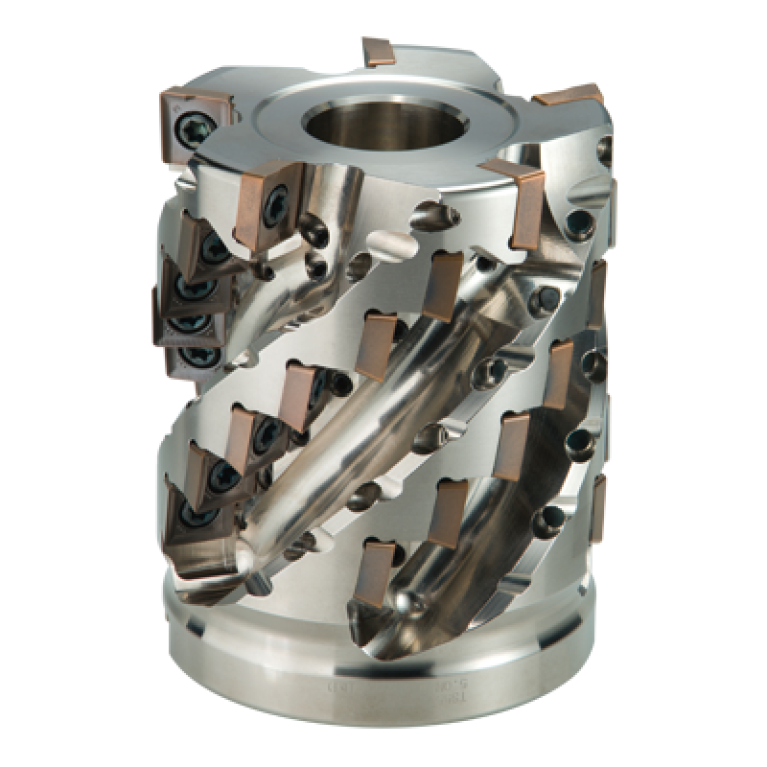

Главная Каталог продукции Toolunited 11 308-04 - Shell milling cutter ASPX4-063A04A064RA24

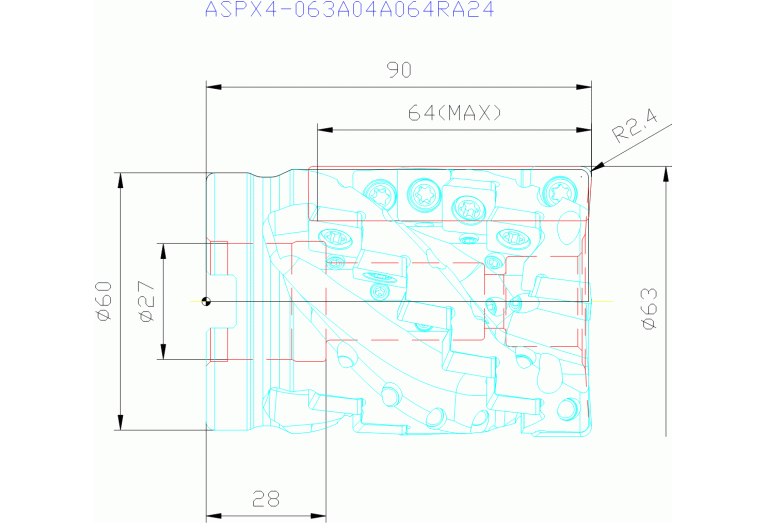

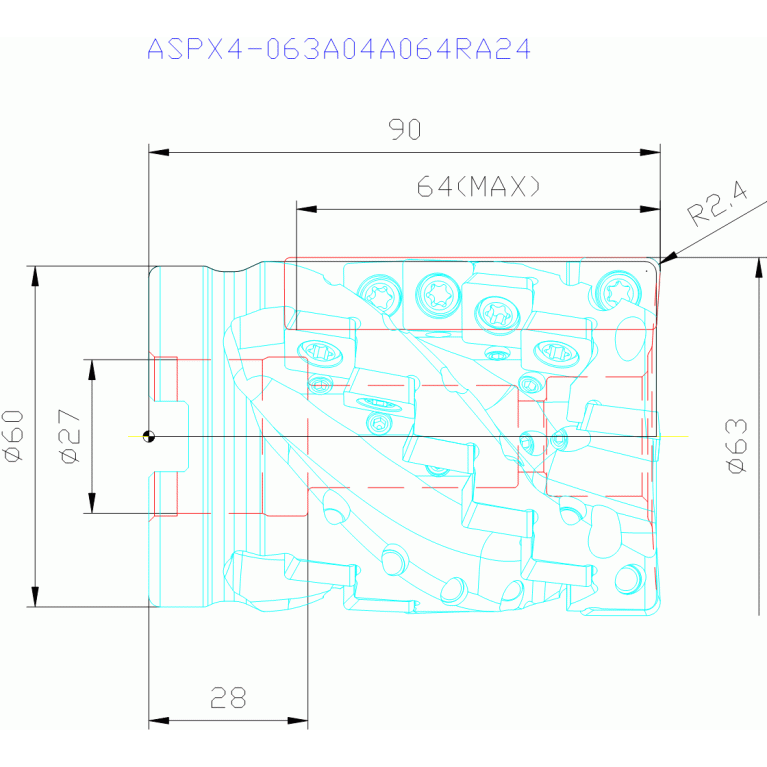

ASPX4-063A04A064RA24

ASPX4-063A04A064RA24 ASPX4-063A04A064RA24 ASPX4-063A04A064RA24 ASPX4-063A04A064RA24

ASPX4-063A04A064RA24

Mitsubishi Materials
Артикул: 10616949
В наличии
В корзину
Описание
Характеристики

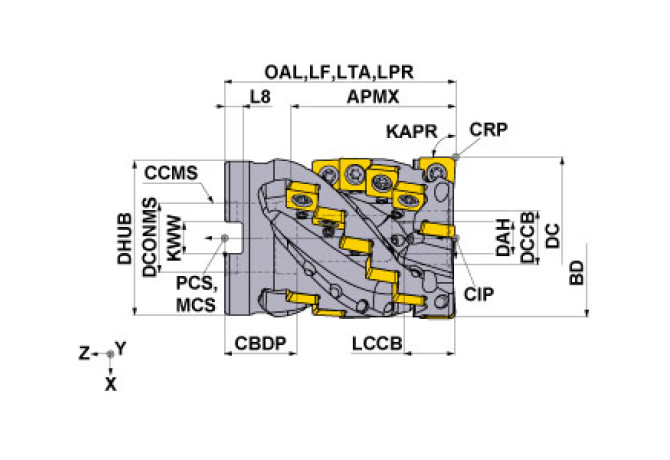

A1A Cutting edge angle major Pos. A
86 Degree
A1B Cutting edge angle major Pos. B
86 Degree
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
11 Degree
B2A Insert width Pos. A
12.7 mm
B2B Insert width Pos. B
12.7 mm
BD Body diameter
60 mm
BLDA Tool style code Position A
3
BLDB Tool style code Position B
3
C1A Insert thickness Pos. A
4.8 mm
C1B Insert thickness Pos. B
4.8 mm
CCONMS Connection count machine side
2
CDX Cutting depth maximum
64 mm
CICT Cutting item count
24
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter
63 mm
DCCB Counterbore diameter connection bore
21 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
FDA02702200
FamilyProducts
end mills
GAMF Rake angle radial
7 Degree
GAMP Rake angle axial
-1 Degree
HAND Cutting direction
R - Right
ID Technical product number
10616949
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
FDA22G2700$$$$
ISYC Subclass
308-04 - Shell milling cutter
LCCB Counterbore depth connection bore
19 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03 ISO
FDA22G2700$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702200
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
ASPX4-063A04A064RA24
OAL Overall length
90 mm
Working process
No working processes available
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
