2SJ3J063038F2R00
2SJ3J063038F2R00
Артикул:
3054567
В наличии
Характеристики
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
CCONMS Connection count machine side
1
CDX Cutting depth maximum
38 mm
CICT Cutting item count
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
63 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
55 mm
DIN
FDA02702210
FamilyProducts

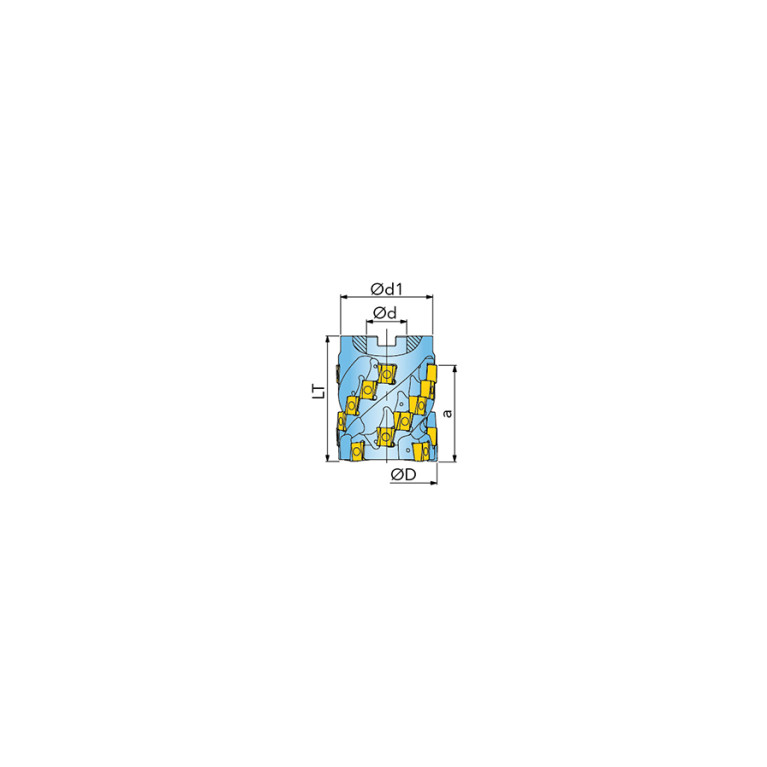

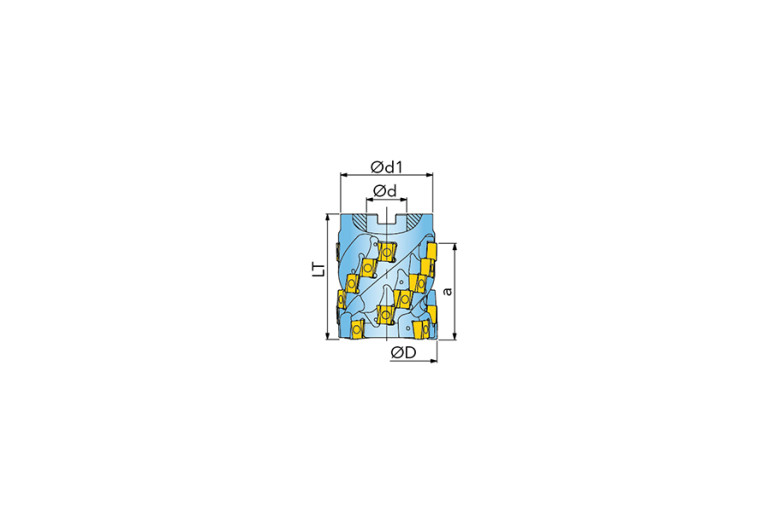

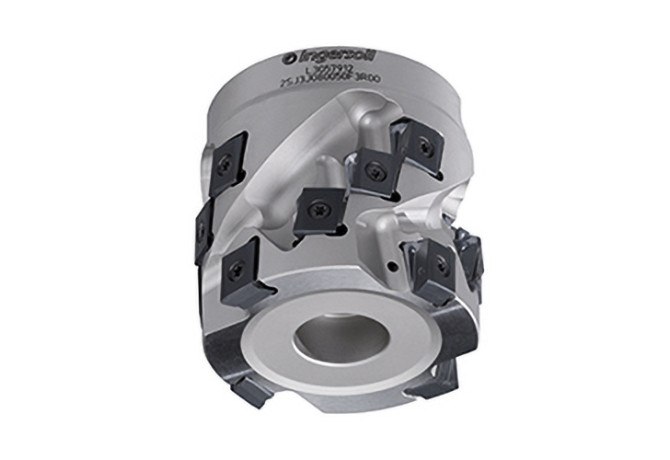

Extended Flute End Mill 2SJ3J...F
HAND Cutting direction
R - Right
ID Technical product number
3054567
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-04 - Shell milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702210
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
2SJ3J063038F2R00
OAL Overall length
60 mm
Working process
No working processes available
WT Weight of item
0.79 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
