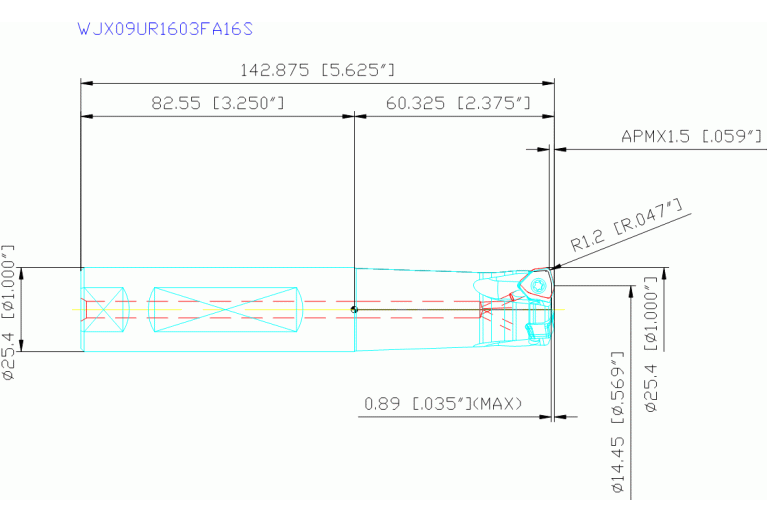

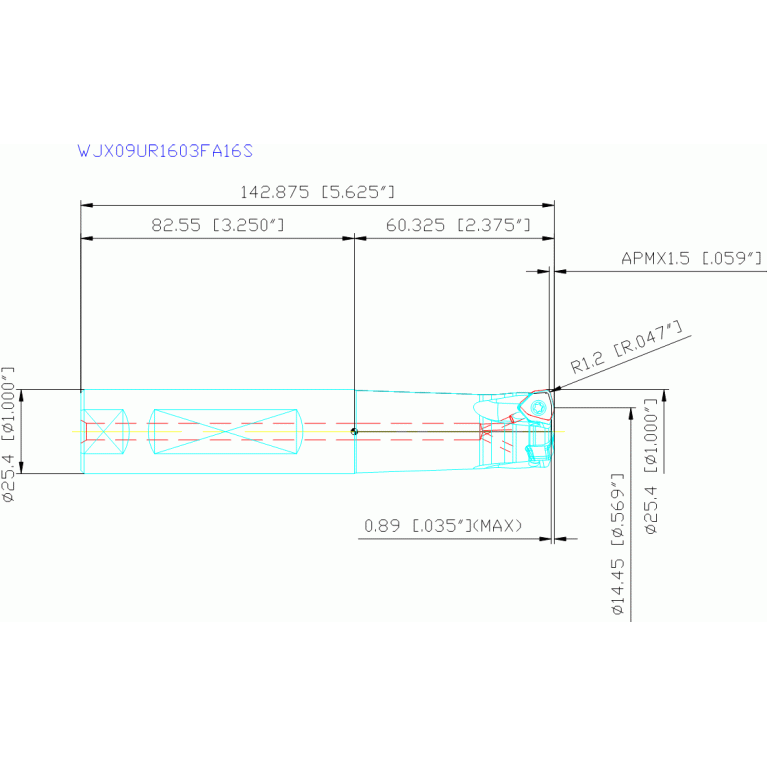

WJX09UR1603FA16S

Артикул: 10618653

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

APMX Depth of cut maximum

1.1938 mm

B1A Cutting edge length Pos. A

9.525 mm

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

4.73 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

1.2 mm

D6A Wiper edge length Pos. A

0.88 mm

DC Cutting diameter

14.351 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25.4 mm

Delivery state valid from

4/1/2022

DIN

ZYL10000135

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

end mills

HAND Cutting direction

R - Right

ID Technical product number

10618653

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

ZYL01S1000$$$$

ISYC Subclass

307-02 - Non-centre cutting single row V-groove end mill

KAPR Tool cutting edge angle

15 Degree

LF Functional length

142.875 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 ISO

ZYL01S1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10000135

LPR Protruding length

60.325 mm

LS Shank length

82.55 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

WJX09UR1603FA16S

OAL Overall length

142.875 mm

RMPX Ramping angle maximum

4.5 Degree

Working process

No working processes available

WT Weight of item

1 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
