Главная Каталог продукции Toolunited 11 307-02 - Non-centre cutting single row V-groove end mill WJX09R2802SA25EL

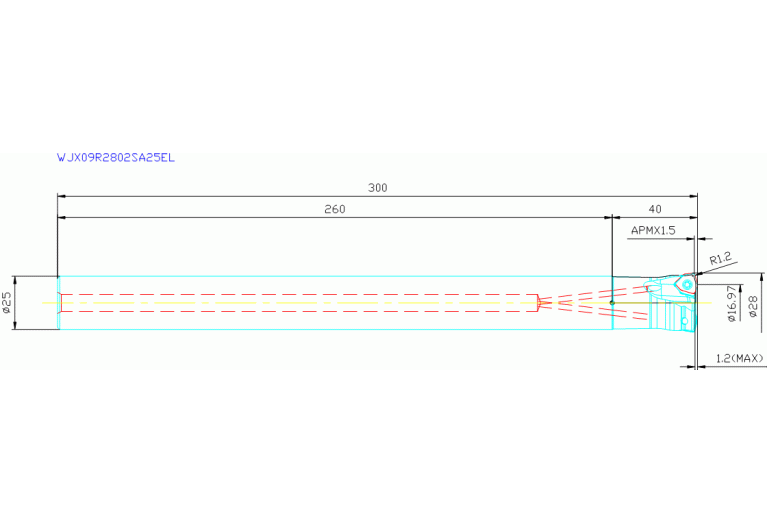

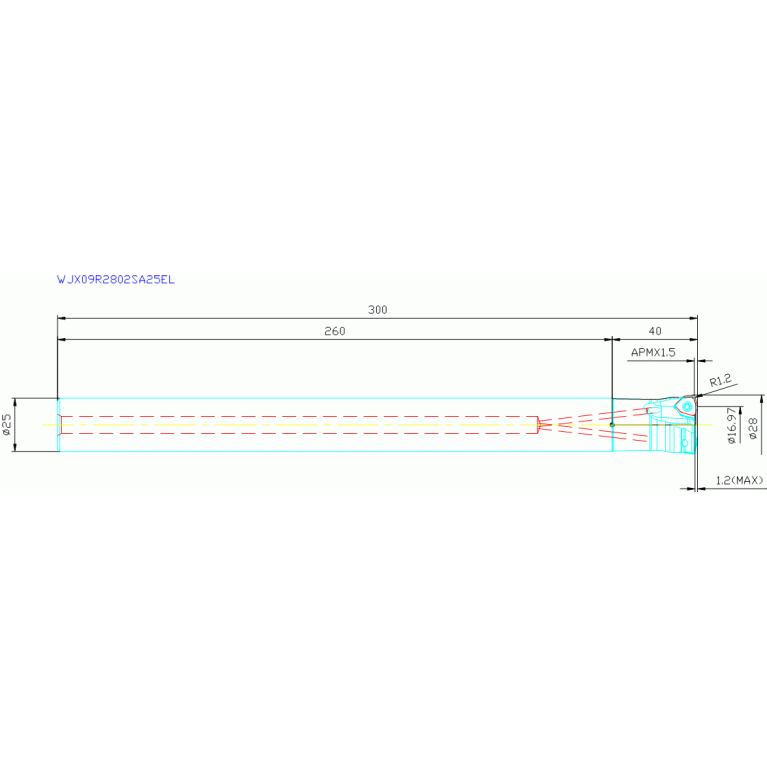

WJX09R2802SA25EL

WJX09R2802SA25EL WJX09R2802SA25EL WJX09R2802SA25EL WJX09R2802SA25EL

WJX09R2802SA25EL

Mitsubishi Materials
Артикул: 10618158
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
APMX Depth of cut maximum
1.2 mm
B1A Cutting edge length Pos. A
9.525 mm
B3A Inscribed circle diameter Pos. A
9.525 mm
BD Body diameter
26.3 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
4.73 mm
CCONMS Connection count machine side
2
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
1.2 mm
D6A Wiper edge length Pos. A
0.88 mm
DC Cutting diameter
16.9 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
28 mm
Delivery state valid from
4/1/2022
DIN
ZYL02500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
end mills
HAND Cutting direction
R - Right
ID Technical product number
10618158
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL01G2500$$$$
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
15 Degree
LF Functional length
300 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
ZYL01G2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
40 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
WJX09R2802SA25EL
OAL Overall length
300 mm
RMPX Ramping angle maximum
5.6 Degree
Working process
No working processes available
WT Weight of item
1 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
