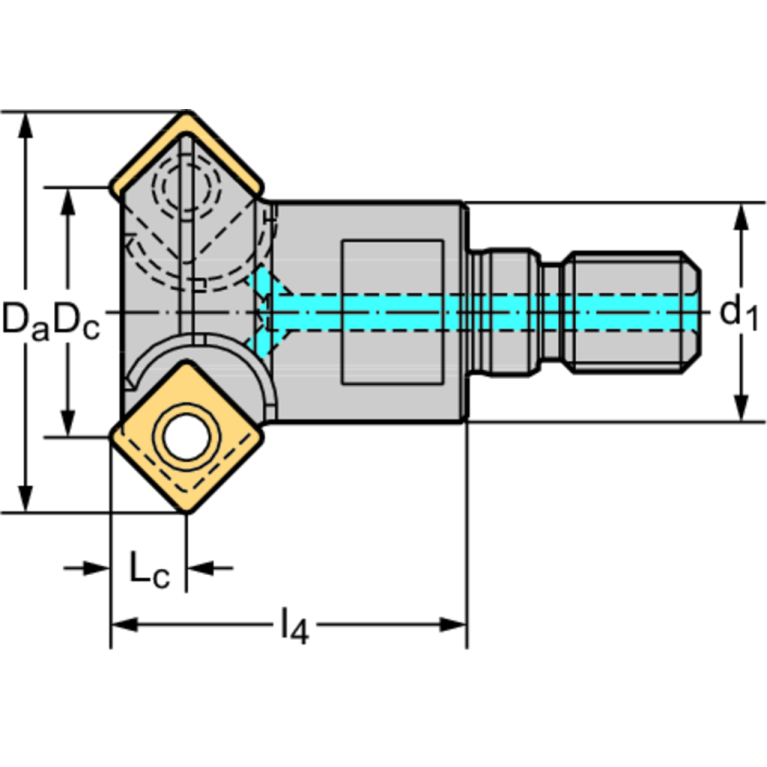

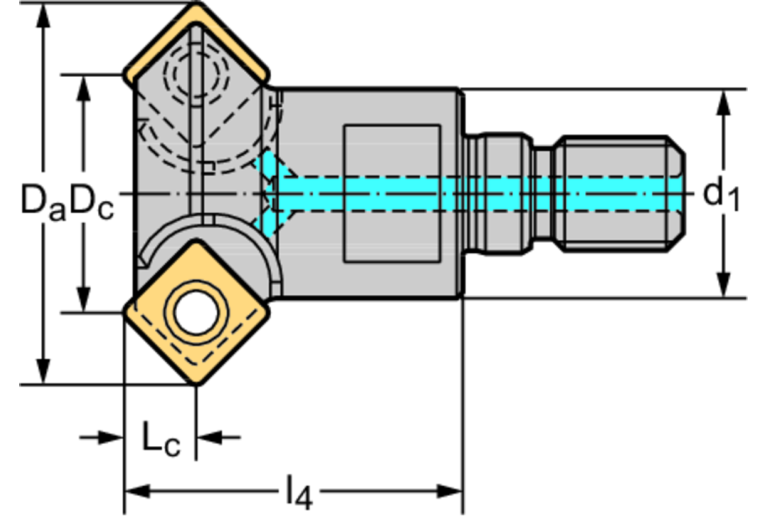

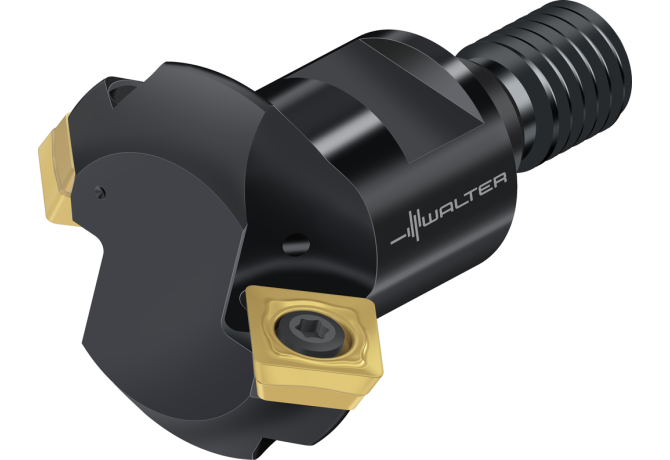

Главная Каталог продукции Toolunited 11 307-02 - Non-centre cutting single row V-groove end mill M4574-012-TC06-02-03

M4574-012-TC06-02-03

M4574-012-TC06-02-03 M4574-012-TC06-02-03 M4574-012-TC06-02-03

M4574-012-TC06-02-03

Walter
Артикул: 7785491
В наличии
В корзину
Описание
Характеристики
ADJBY Adjustment property
0 - Adjustment not possible
APMX Depth of cut maximum
3.5 mm
AZ Plunge depth maximum
1 mm
BLDA Tool style code Position A
2
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
DC Cutting diameter
12 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
20.3 mm
Delivery state valid from
12/1/2023
DIN
SAW00600215
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Chamfer milling cutters M4574
HAND Cutting direction
R - Right
ID Technical product number
7785491
Interface codes
J6 / J61
ISO
SAW02A0060$$$$
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0060
LOC-03 DCONMS Diameter
9.7 mm
LOC-03 ISO
SAW02A0060$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW00600215
LPR Protruding length
20 mm
LS Shank length
14.5 mm
LU Usable length
20 mm
Name Identifying order number
M4574-012-TC06-02-03
OAL Overall length
34.5 mm
RPMX Rotational speed maximum
28100 1/min
Working process
FPR - Profile milling
WT Weight of item
0.025 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
