C5-R217.53-080-09-6A
C5-R217.53-080-09-6A
Артикул:
02745056
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
26 Degree
APMX Depth of cut maximum
4.5 mm
B1A Cutting edge length Pos. A
9.525 mm
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
3.97 mm
CCONMS Connection count machine side
3
CICT Cutting item count
6
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.4 mm
D4A Cutting edge angle major Pos. A
45 Degree
D6A Wiper edge length Pos. A
1.5 mm

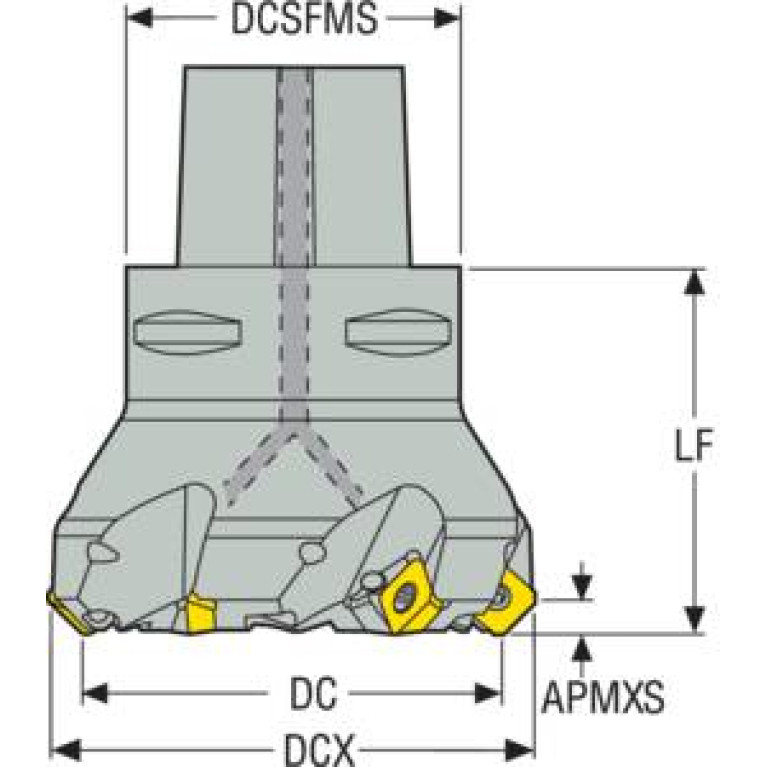

DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
90 mm
Delivery state valid from
3/14/2020
DIN
CCS05000185
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
C5-R217.53-080-09-6A
GAMF Rake angle radial
-5 Degree
GAMP Rake angle axial
20 Degree
HAND Cutting direction
R - Right
ID Technical product number
02745056
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
CCS01C0500$$$$
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
Name Identifying order number
C5-R217.53-080-09-6A
RPMX Rotational speed maximum
12500 1/min
Working process
No working processes available
WT Weight of item
1.296 kg
ZEFP Peripheral effective cutting edge count
6
