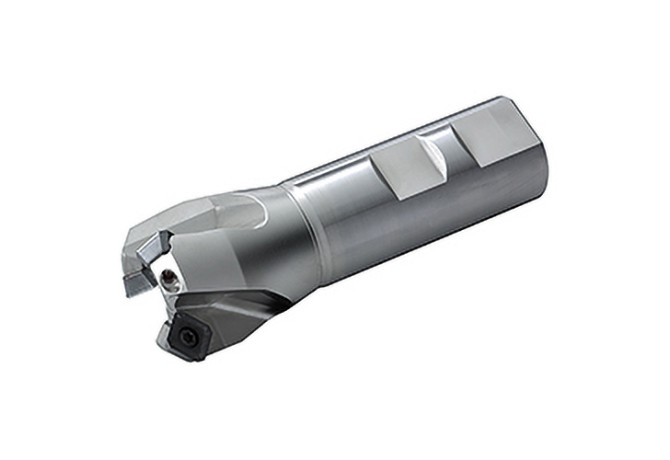

Главная Каталог продукции Toolunited 11 307-02 - Non-centre cutting single row V-groove end mill 15N1F020040W4R00

15N1F020040W4R00

15N1F020040W4R00 15N1F020040W4R00 15N1F020040W4R00 15N1F020040W4R00

15N1F020040W4R00

Ingersoll
Артикул: 3080147
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
4.5 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL02001005
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Face Mill 15N1F...W
HAND Cutting direction
R - Right
ID Technical product number
3080147
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001005
Name Identifying order number
15N1F020040W4R00
OAL Overall length
90 mm
RMPX Ramping angle maximum
17 Degree
Working process
No working processes available
WT Weight of item
0.22 kg
ZEFP Peripheral effective cutting edge count
2
