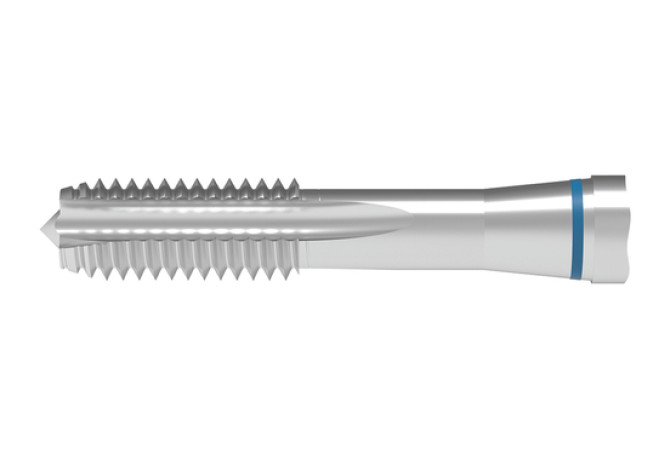

Главная Каталог продукции Toolunited 11 301-02 - Thread cutting tap with reinforced shank 22004030

22004030

22004030 22004030 22004030

22004030

Ceratizit
Артикул: 22004030
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
ohne
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
10/1/2021
DIN
ZYL00352105
DRVS Drive size
2.7 mm
FamilyProducts
HSSE MASCH.GEWINDEBOHRER DL
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
18 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0035
LOC-03 DCONMS Diameter
3.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00352105
Name Identifying order number
22004030

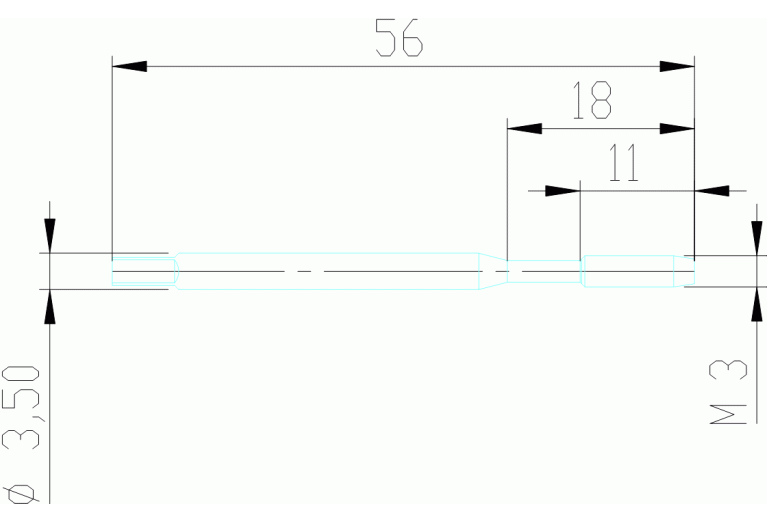

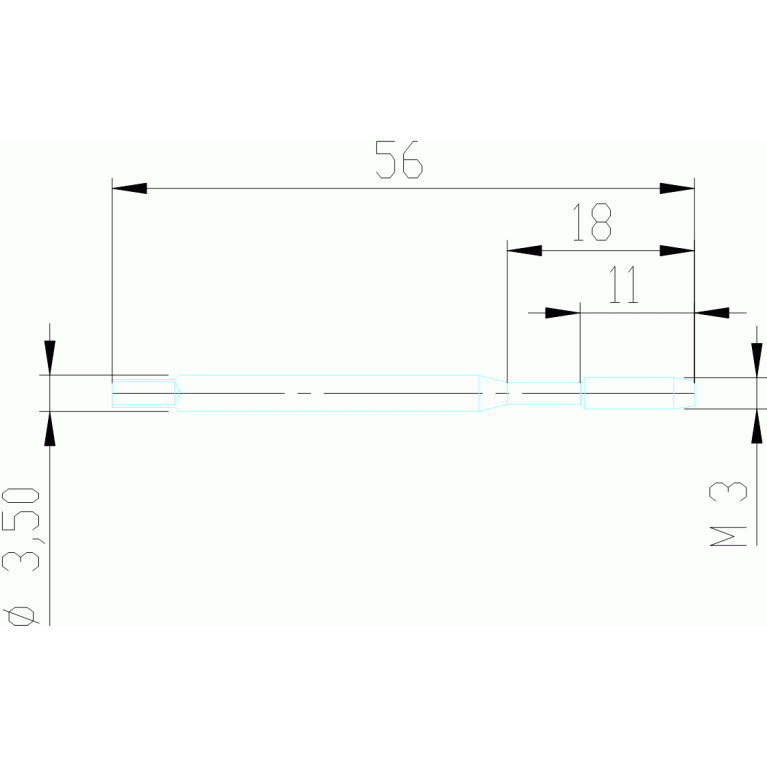

OAL Overall length
56 mm
TCL Tap chamfer length
2 mm
TCTR Thread tolerance class
ISO 3 6G
TD Thread diameter
3 mm
THFT Thread form type
M
THL Thread cutting part length
11 mm
THOD Thread designation
M3x0.5-ISO 3 6G
TP Thread pitch
0.5 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
