Ceratizit
Артикул: 22002080
В наличии
В корзину
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
ohne
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
10/1/2021
DIN
ZYL00802105
DRVS Drive size
6.2 mm
FamilyProducts
HSSE MASCH.GEWINDEBOHRER DL
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
35 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00802105
Name Identifying order number
22002080

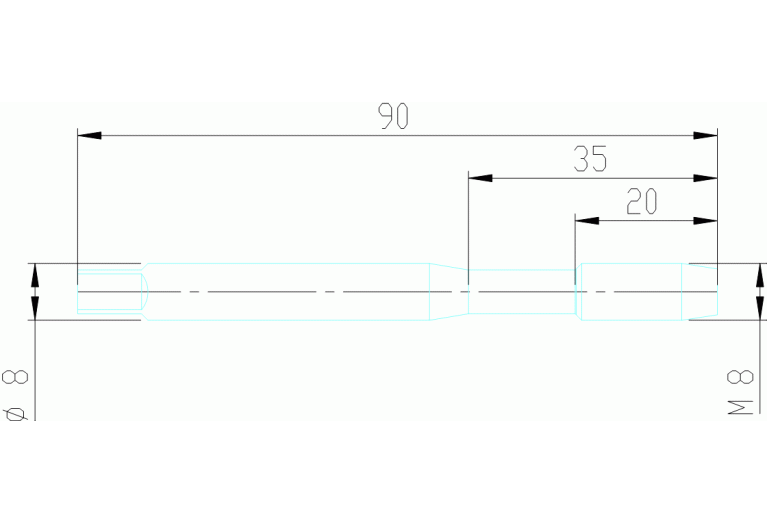

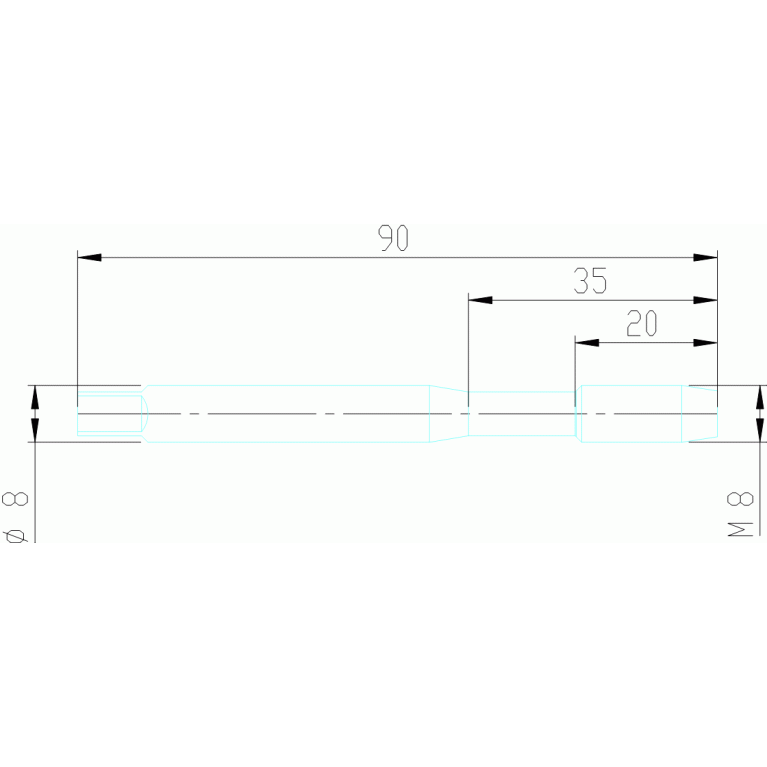

OAL Overall length
90 mm
TCL Tap chamfer length
5 mm
TCTR Thread tolerance class
ISO 1 4H
TD Thread diameter
8 mm
THFT Thread form type
M
THL Thread cutting part length
20 mm
THOD Thread designation
M8x1.25-ISO 1 4H
TP Thread pitch
1.25 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
