Главная Каталог продукции Toolunited 11 309-07 - System tool for external turning DTC-D40-SDUCR-11

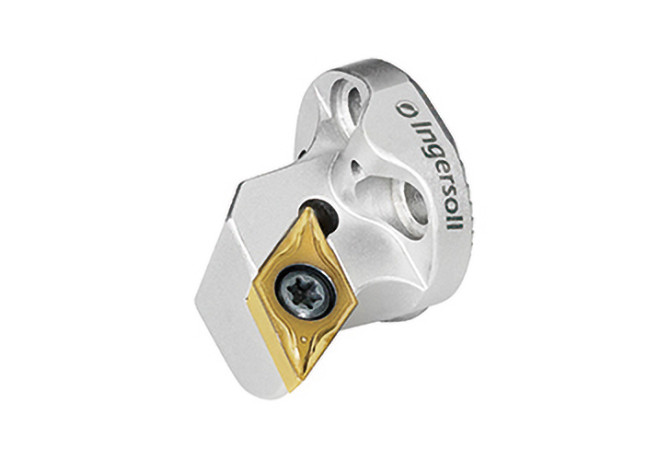

DTC-D40-SDUCR-11

Артикул: 6312597

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

IL-IMC AB 40

DIN CSW1

DC0702023N

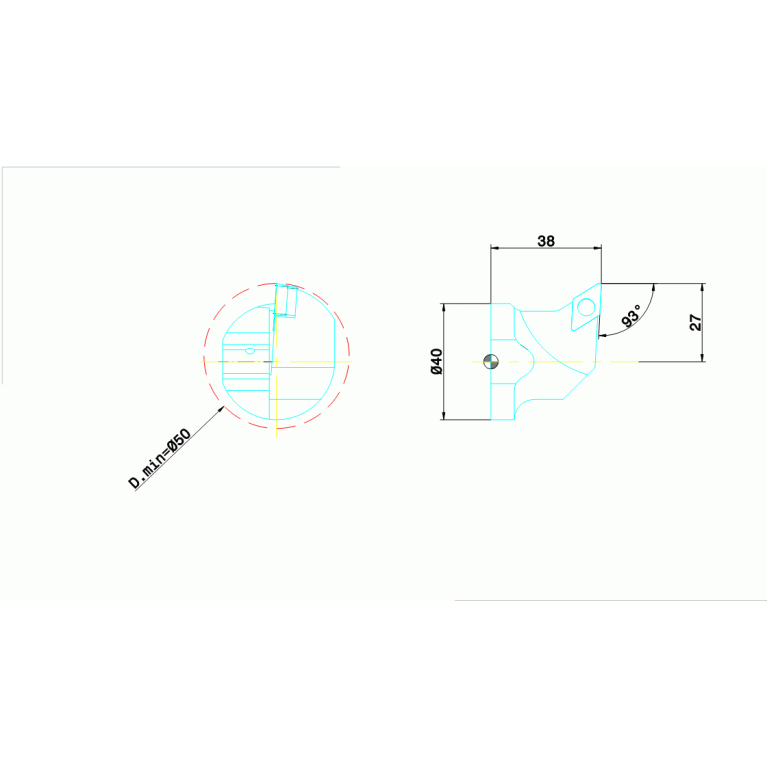

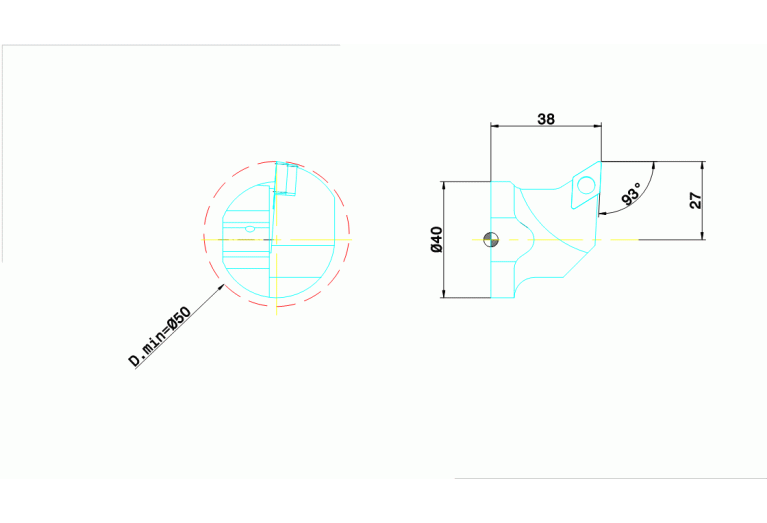

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

55 Degree

FamilyProducts

DTC-SDUCR/L 0702 /11T3

HAND Cutting direction

R - Right

ID Technical product number

6312597

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

38 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-IMC AB 40

LPR Protruding length

38 mm

LTA Length tool assembly

38 mm

MIID Master insert identification

DC T11T3

Name Identifying order number

DTC-D40-SDUCR-11

THSC Tool holder shape code

A - offset shank design

WF Functional width

27 mm

Working process

No working processes available

WT Weight of item

0.25 kg
