Главная Каталог продукции Toolunited 11 309-07 - System tool for external turning DTC-D40-HVUNR-1304

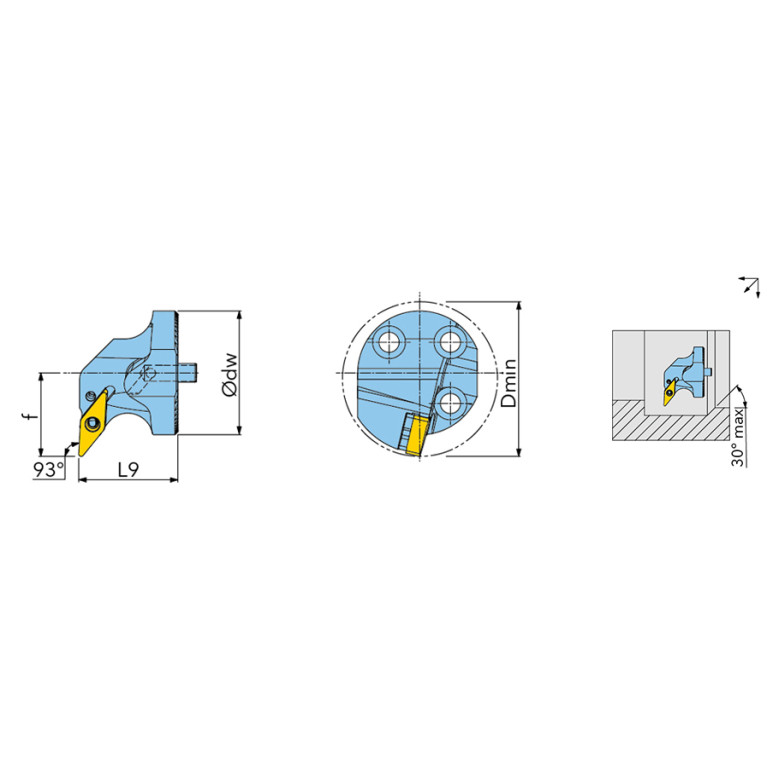

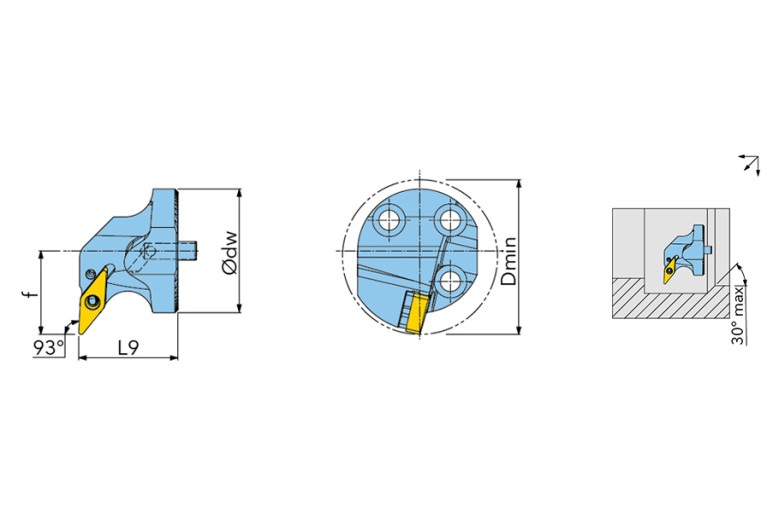

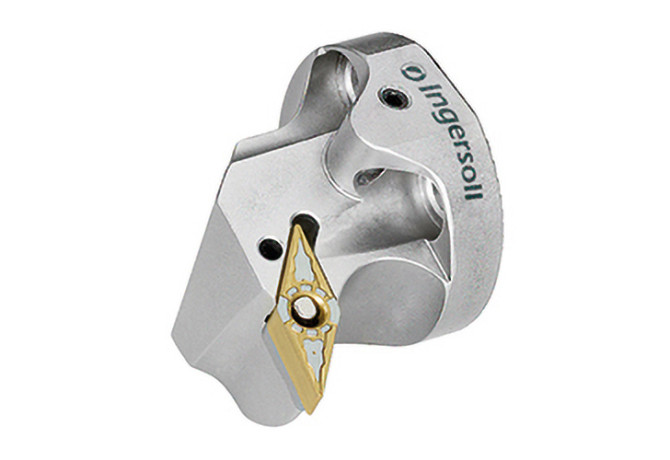

DTC-D40-HVUNR-1304

Артикул: 6321561

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

IL-IMC AB 40

DIN CSW1

VN1304017N

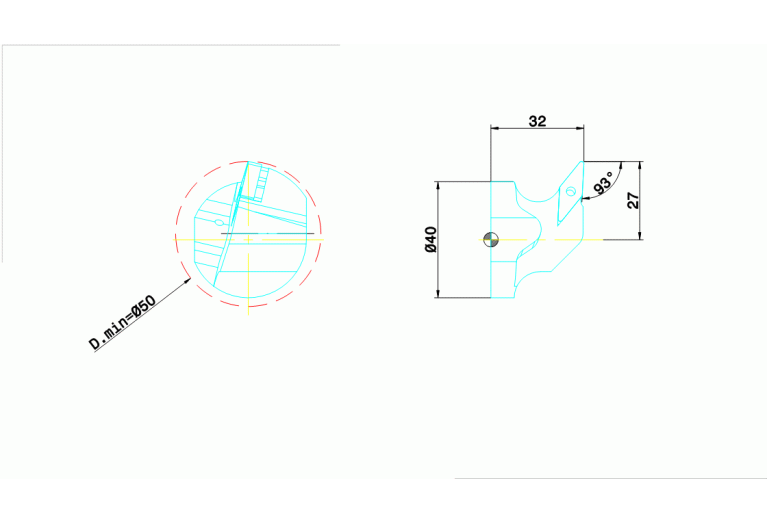

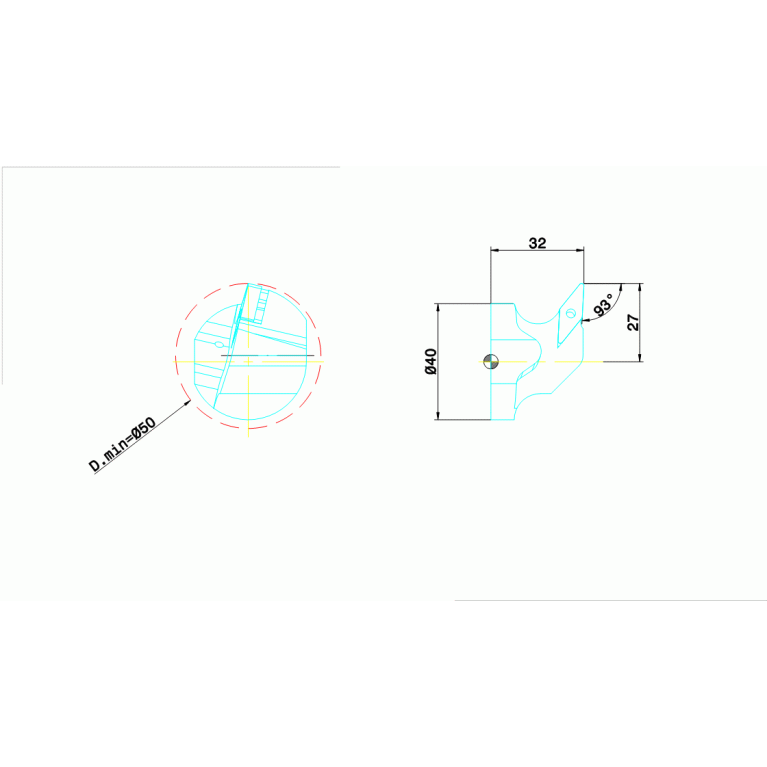

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

35 Degree

FamilyProducts

DTC-HVUNR/L 1304

HAND Cutting direction

R - Right

ID Technical product number

6321561

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-07 - System tool for external turning

KAPR Tool cutting edge angle

93 Degree

LF Functional length

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-IMC AB 40

LPR Protruding length

32 mm

LTA Length tool assembly

32 mm

MIID Master insert identification

VN X1304

Name Identifying order number

DTC-D40-HVUNR-1304

THSC Tool holder shape code

A - offset shank design

WF Functional width

27 mm

Working process

No working processes available

WT Weight of item

0.25 kg
