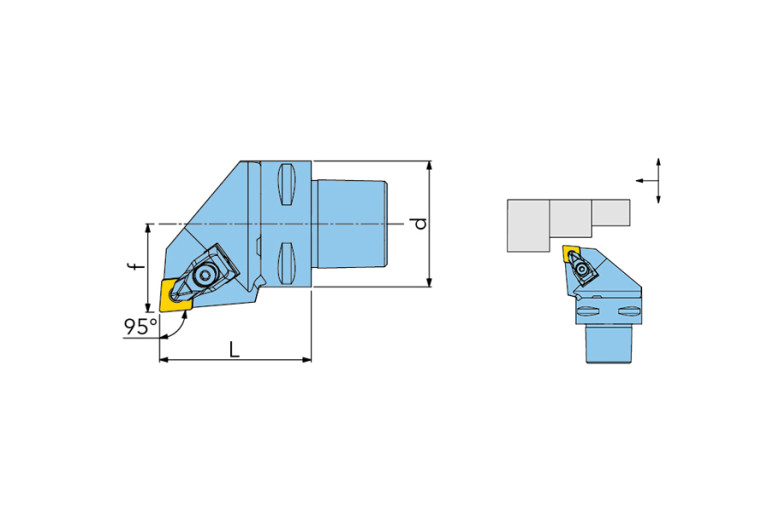

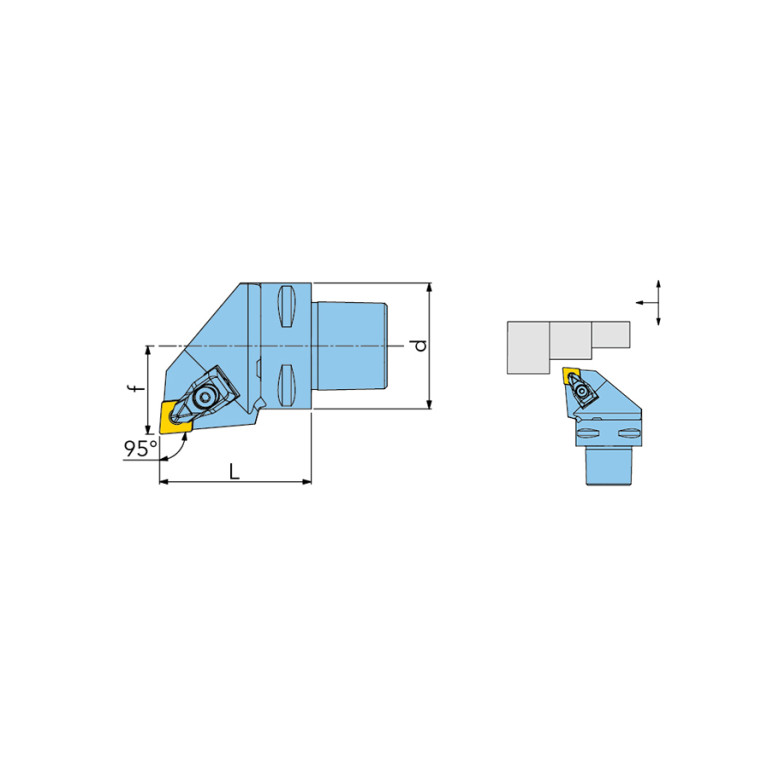

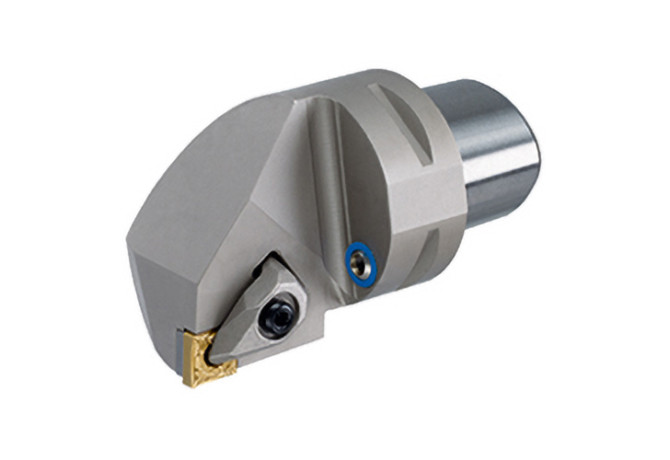

C4-TCLNL 27050-09

C4-TCLNL 27050-09 C4-TCLNL 27050-09 C4-TCLNL 27050-09

C4-TCLNL 27050-09

Ingersoll
Артикул: 6341275
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DIN
CCS04000195
DIN CSW1
CN0903042N
EPSR Insert included angle
80 Degree
FamilyProducts
C -TCLNR/L
HAND Cutting direction
L - Left
ID Technical product number
6341275
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
50 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LTA Length tool assembly
50 mm
MIID Master insert identification
CN 0903
Name Identifying order number
C4-TCLNL 27050-09
OAL Overall length
50 mm
STDDES Standard designation
C4-TCLNL 27050-09
THSC Tool holder shape code
A - offset shank design
WF Functional width
27 mm
Working process
No working processes available
WT Weight of item
0.44 kg
