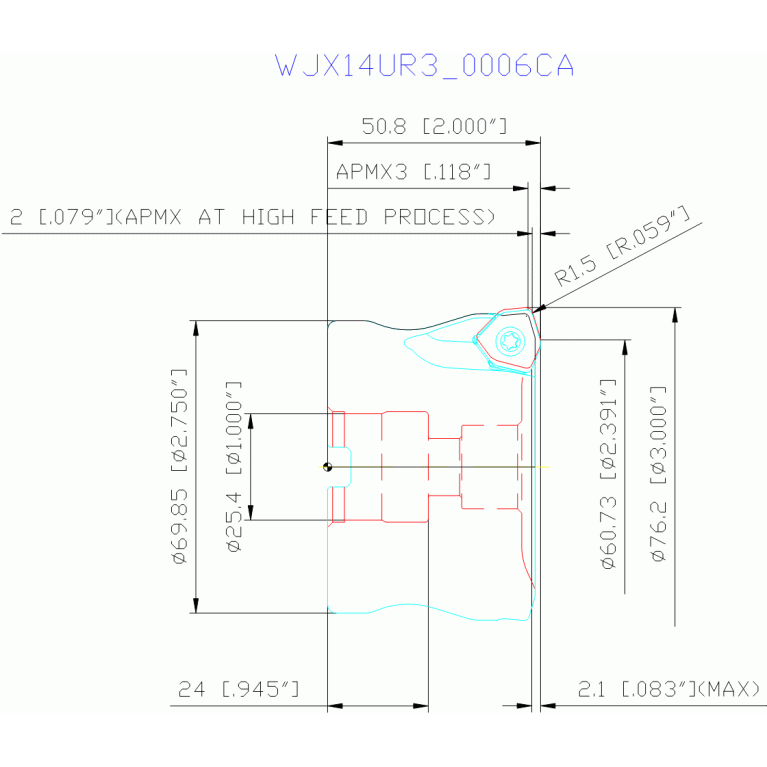

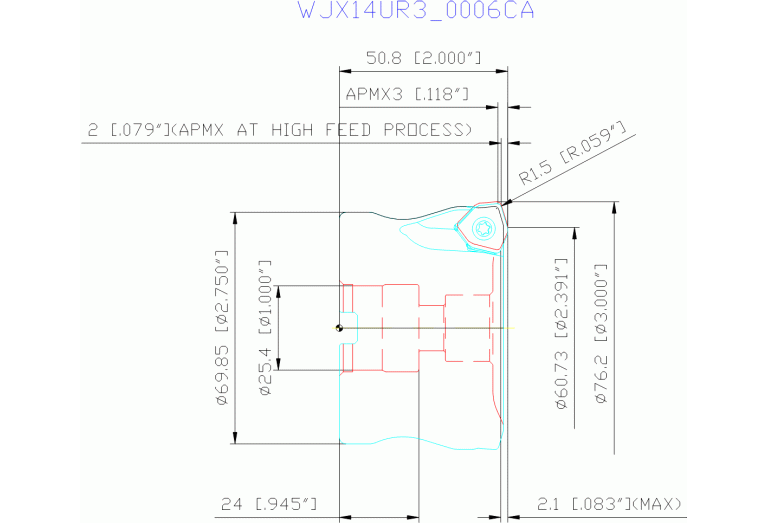

WJX14UR3.0006CA

WJX14UR3.0006CA WJX14UR3.0006CA WJX14UR3.0006CA WJX14UR3.0006CA

WJX14UR3.0006CA

Mitsubishi Materials
Артикул: 10597972
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A2A Clearance angle major Pos. A
11 Degree
AZ Plunge depth maximum
83 mm
B1A Cutting edge length Pos. A
9.577 mm
B3A Inscribed circle diameter Pos. A
14 mm
BD Body diameter
69.85 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
6.575 mm
CCONMS Connection count machine side
2
CDX Cutting depth maximum
2.0066 mm
CICT Cutting item count
6
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
1.5 mm
D6A Wiper edge length Pos. A
1.3 mm
DC Cutting diameter
60.6298 mm
DCCB Counterbore diameter connection bore
19.9898 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
76.2 mm
Delivery state valid from
4/1/2022
DIN
FDA10002220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
face mills
GAMF Rake angle radial
-10 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
10597972
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA22S1000$$$$
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
17 Degree
LCCB Counterbore depth connection bore
17.5006 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
FDA22S1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002220
MILTTY Mill tool type ISO
A - Face milling cutter shoulder cutter peripheral
Name Identifying order number
WJX14UR3.0006CA
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
2.2 Degree
Working process
No working processes available
WT Weight of item
2.3 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
