Главная Каталог продукции Toolunited 11 308-01 - Face milling cutter WJX14R16009FA

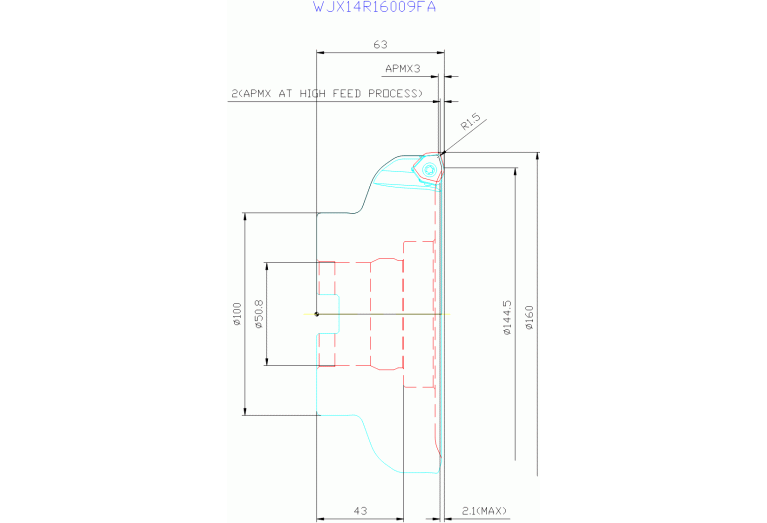

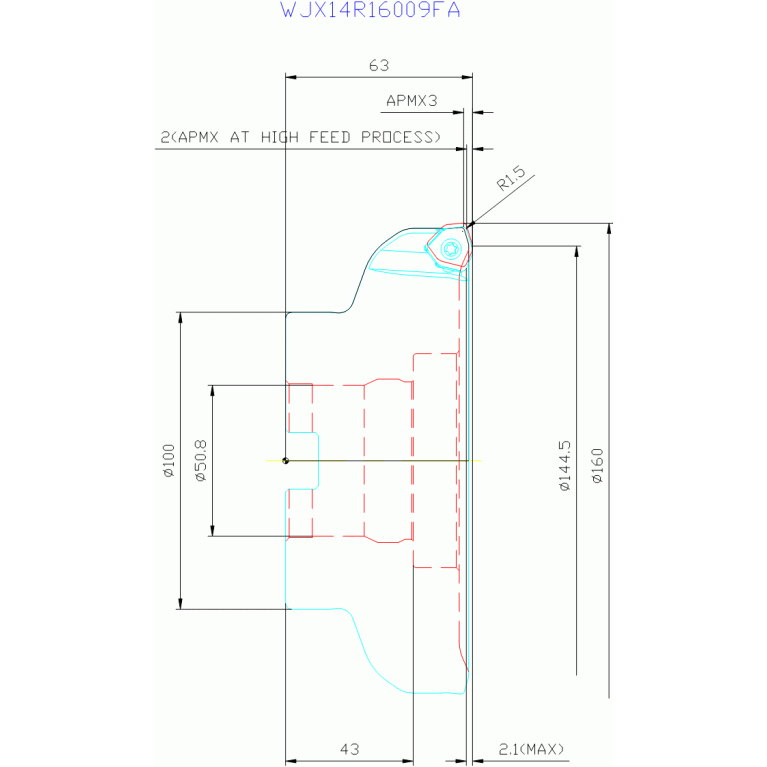

WJX14R16009FA

WJX14R16009FA

Mitsubishi Materials

Артикул: 10596241

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

80 Degree

A2A Clearance angle major Pos. A

11 Degree

AZ Plunge depth maximum

21 mm

B1A Cutting edge length Pos. A

9.577 mm

B3A Inscribed circle diameter Pos. A

14 mm

BD Body diameter

100 mm

BLDA Tool style code Position A

99

C1A Insert thickness Pos. A

6.575 mm

CCONMS Connection count machine side

2

CDX Cutting depth maximum

2 mm

CICT Cutting item count

9

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

1.5 mm

D6A Wiper edge length Pos. A

1.3 mm

DC Cutting diameter

144.4 mm

DCCB Counterbore diameter connection bore

72 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

160 mm

Delivery state valid from

4/1/2022

DIN

FDA20002220

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

9

FamilyProducts

face mills

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

-6 Degree

HAND Cutting direction

R - Right

ID Technical product number

10596241

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO

FDA22G5080$$$$

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

17 Degree

LCCB Counterbore depth connection bore

18.7 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

2000

LOC-03 DCONMS Diameter

50.8 mm

LOC-03 ISO

FDA22G5080$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA20002220

MILTTY Mill tool type ISO

A - Face milling cutter shoulder cutter peripheral

Name Identifying order number

WJX14R16009FA

OAL Overall length

63 mm

RMPX Ramping angle maximum

0.8 Degree

Working process

No working processes available

WT Weight of item

4.5 kg

ZEFF Face effective cutting edge count

9

ZEFP Peripheral effective cutting edge count

9
