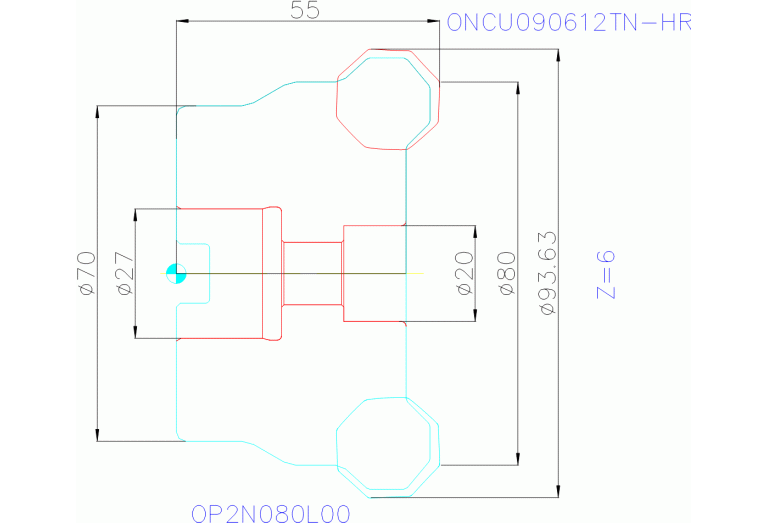

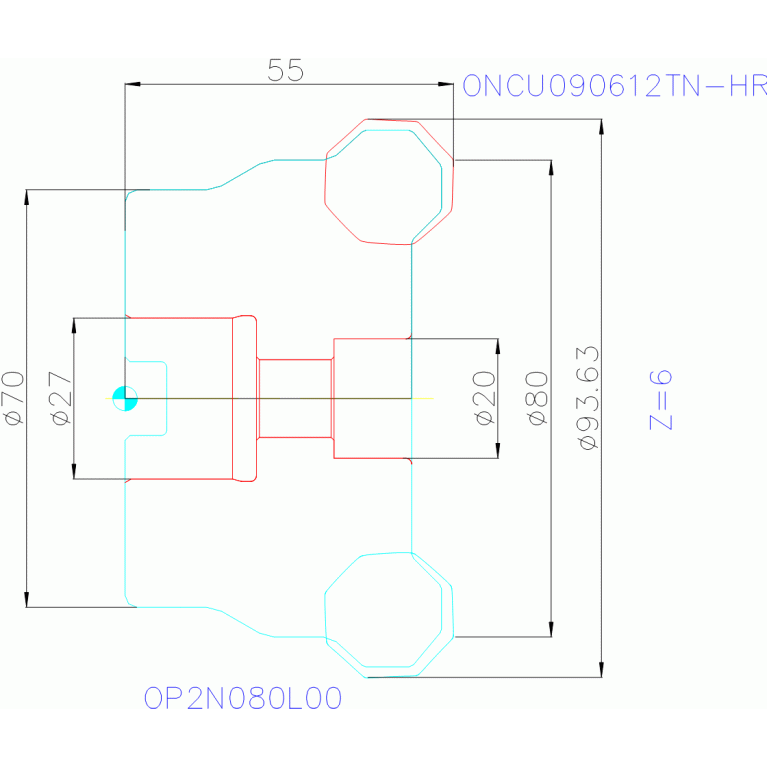

OP2N080L00
OP2N080L00
Артикул:
3029255
В наличии
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
5 mm
CICT Cutting item count
6
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
93.6 mm
Delivery state
NL - Discontinued
DHUB Hub diameter
70 mm
DIN
FDA02702200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
Face Mill OP2N
HAND Cutting direction
L - Left
ID Technical product number
3029255
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
43 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702200
Name Identifying order number
OP2N080L00
OAL Overall length
55 mm
Working process
No working processes available
WT Weight of item
1.64 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
