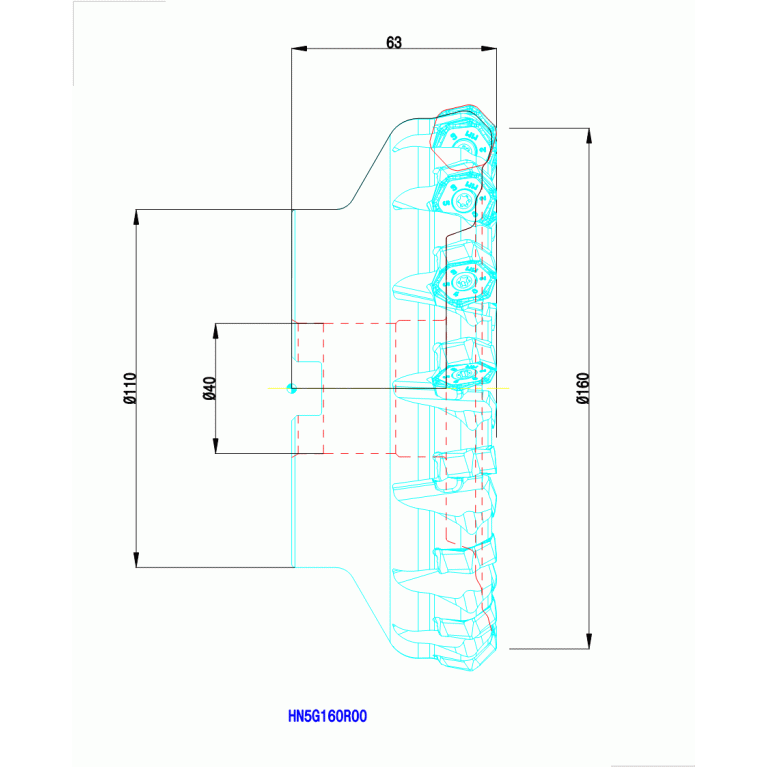

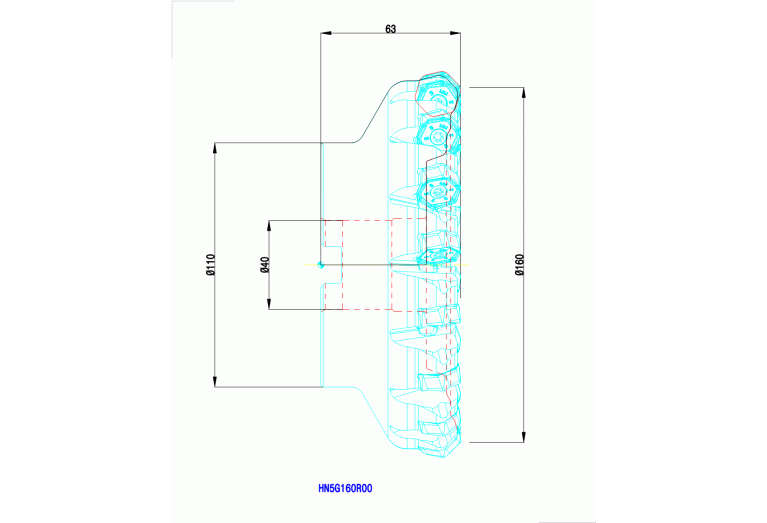

HN5G160R00

Артикул: 3086982

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CDX Cutting depth maximum

5 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

160 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

174.5 mm

Delivery state

LA - Soon discontinued

DHUB Hub diameter

110 mm

DIN

FDA04002200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face Mill HN G

HAND Cutting direction

R - Right

ID Technical product number

3086982

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

SPK Spindle nose mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04002200

Name Identifying order number

HN5G160R00

OAL Overall length

63 mm

Working process

No working processes available

WT Weight of item

5.94 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
