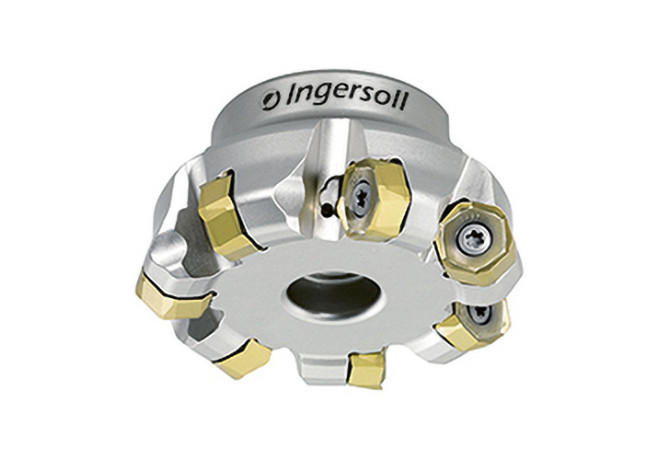

Главная Каталог продукции Toolunited 11 308-01 - Face milling cutter HN5D080R00

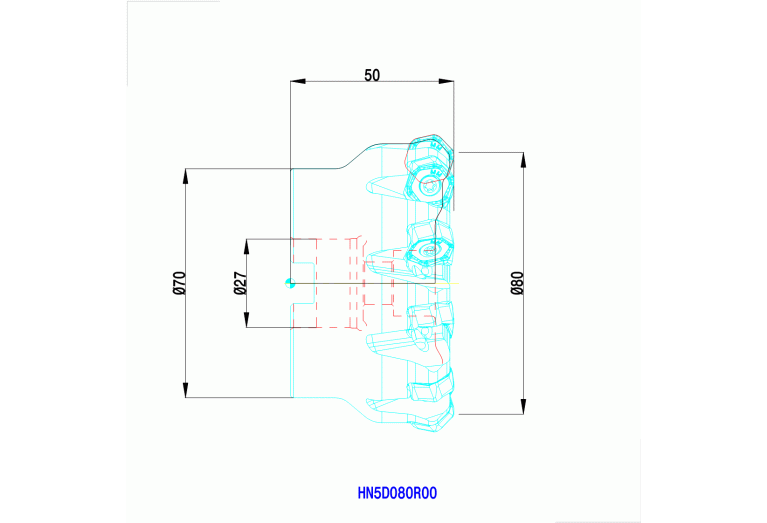

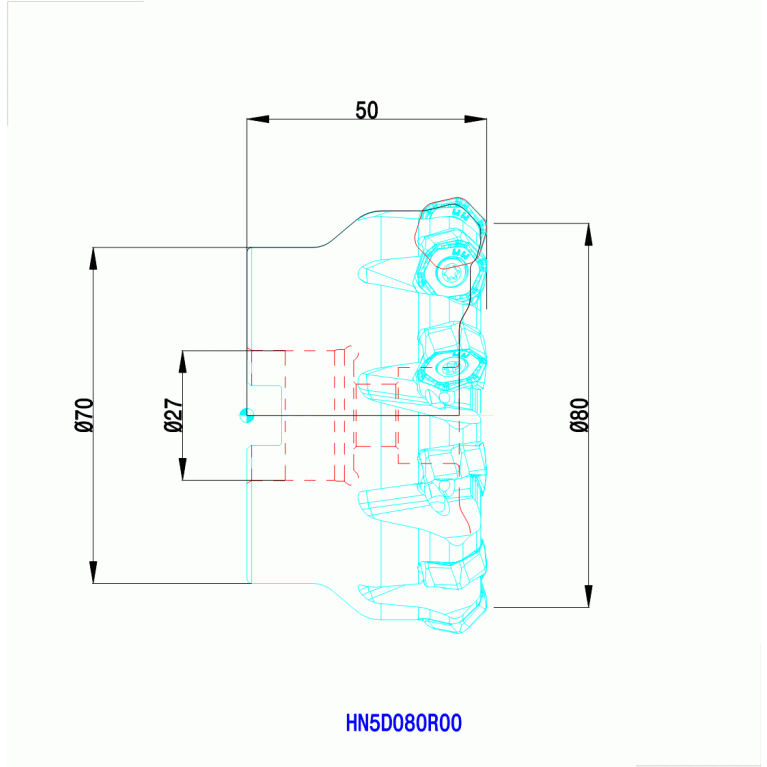

HN5D080R00

HN5D080R00 HN5D080R00 HN5D080R00 HN5D080R00

HN5D080R00

Ingersoll
Артикул: 3083316
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
3 mm
CICT Cutting item count
10
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
90.9 mm
Delivery state
LA - Soon discontinued
DHUB Hub diameter
70 mm
DIN
FDA02702210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts
Face Mill HN D
HAND Cutting direction
R - Right
ID Technical product number
3083316
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
45 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702210
Name Identifying order number
HN5D080R00
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
1.57 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
