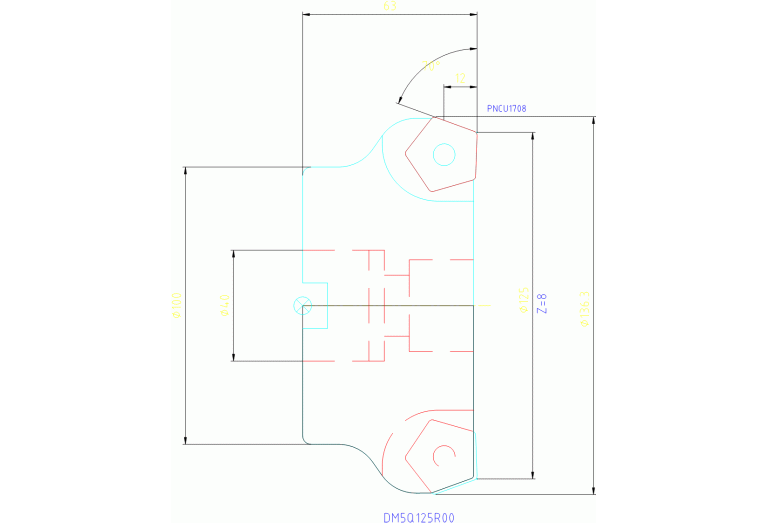

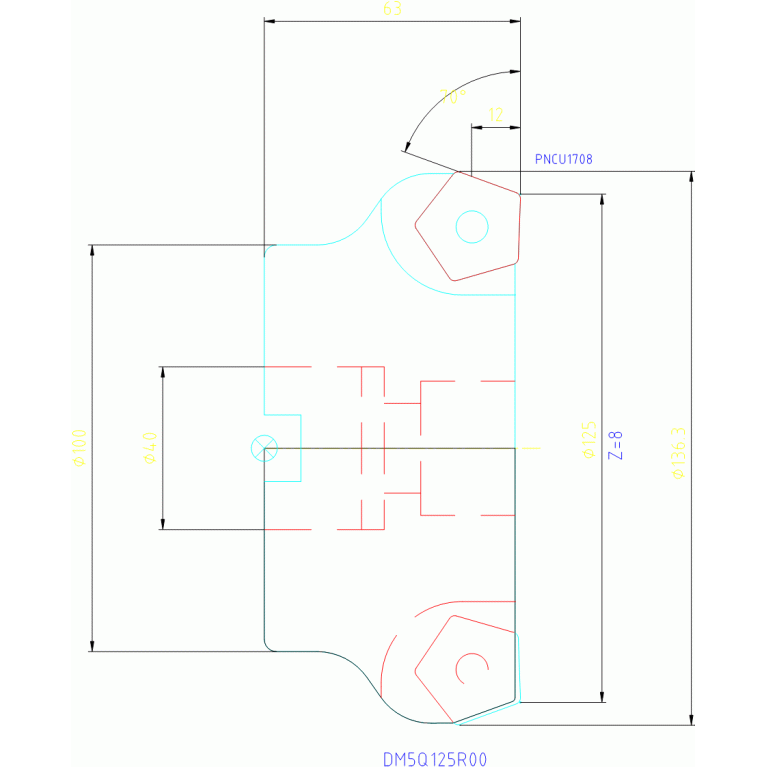

DM5Q125R00
DM5Q125R00
Артикул:
3025903
В наличии
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
12 mm
CICT Cutting item count
8
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
125 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
136.4 mm
Delivery state
LH - Stocked
DHUB Hub diameter
100 mm
DIN
FDA04002210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
8
FamilyProducts
Face Mill DM Q
HAND Cutting direction
R - Right
ID Technical product number
3025903
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
70 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04002210
Name Identifying order number
DM5Q125R00
OAL Overall length
63 mm
Working process
No working processes available
WT Weight of item
3.68 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
