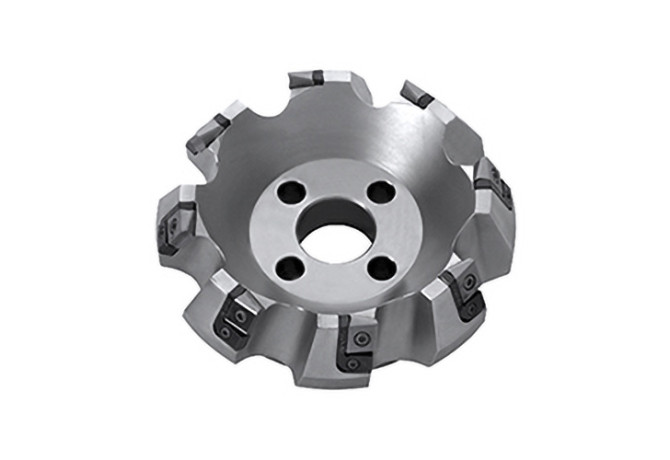

Главная Каталог продукции Toolunited 11 308-01 - Face milling cutter 9C2N160R00

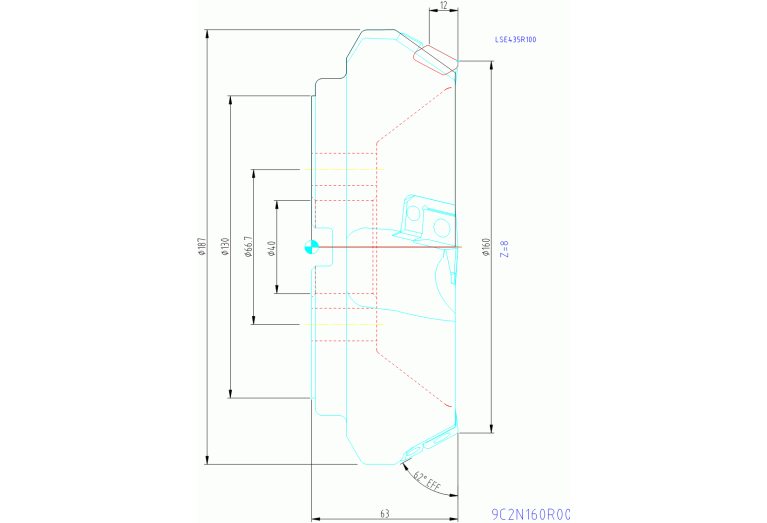

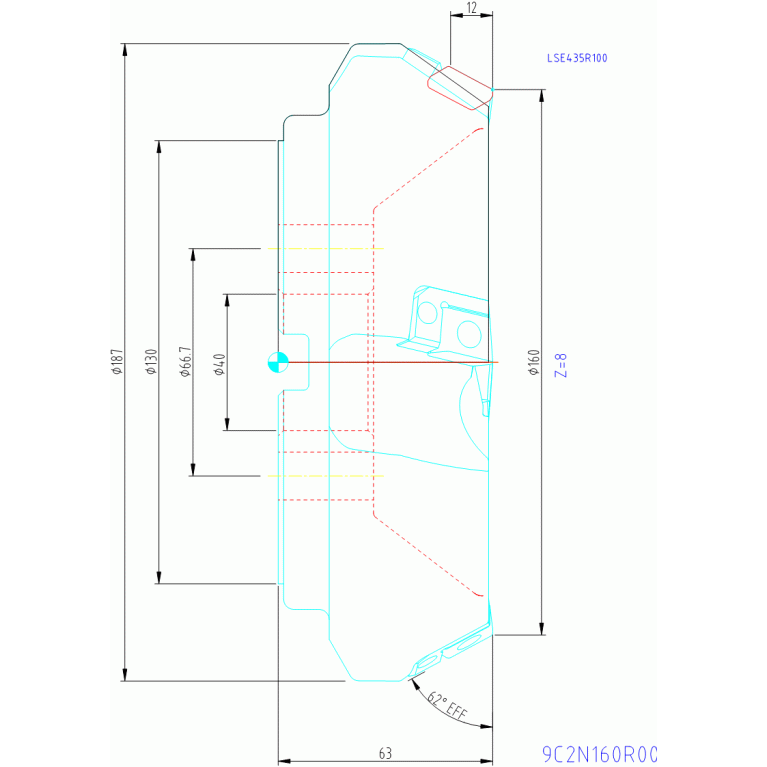

9C2N160R00

9C2N160R00 9C2N160R00 9C2N160R00 9C2N160R00

9C2N160R00

Ingersoll
Артикул: 3055658
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
B1A Cutting edge length Pos. A
13.5 mm
B2A Insert width Pos. A
14.3 mm
BD Body diameter
187 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
8.5 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
12 mm
CICT Cutting item count
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
160 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
130 mm
DIN
SPK04000100
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
8
FamilyProducts
Face Mill 9C2N
HAND Cutting direction
R - Right
ID Technical product number
3055658
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
60 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK04000100
Name Identifying order number
9C2N160R00
OAL Overall length
63 mm
Working process
No working processes available
WT Weight of item
6 kg
ZEFF Face effective cutting edge count
8
ZEFP Peripheral effective cutting edge count
8
