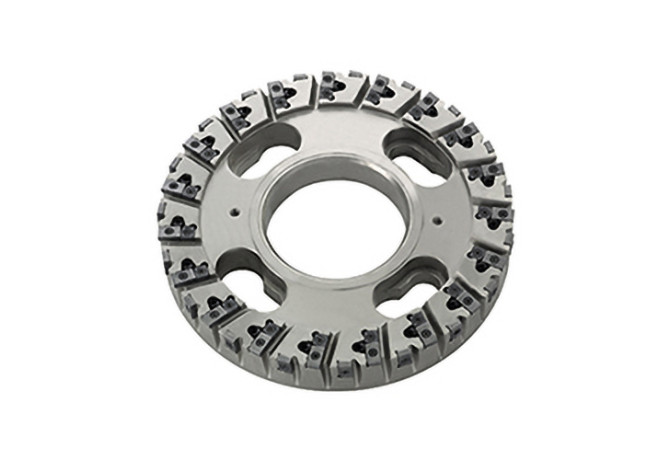

Главная Каталог продукции Toolunited 11 308-01 - Face milling cutter 6FEE315L50

6FEE315L50

Артикул: 3063755

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CCONMS Connection count machine side

CDX Cutting depth maximum

0.5 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DBC diameter bolt circle 2

215.9 mm

DC Cutting diameter

315 mm

DCCB Counterbore diameter connection bore

146 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

319 mm

Delivery state

LH - Stocked

DIN

CCM31500103

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Finish Mill 6FEE...R/L50

HAND Cutting direction

L - Left

ID Technical product number

3063755

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 CCTMS Connection code type

CCM Coromant Cap Mounting SANDVIK

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

3150

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCM31500103

Name Identifying order number

6FEE315L50

OAL Overall length

38 mm

Working process

No working processes available

WT Weight of item

14 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
