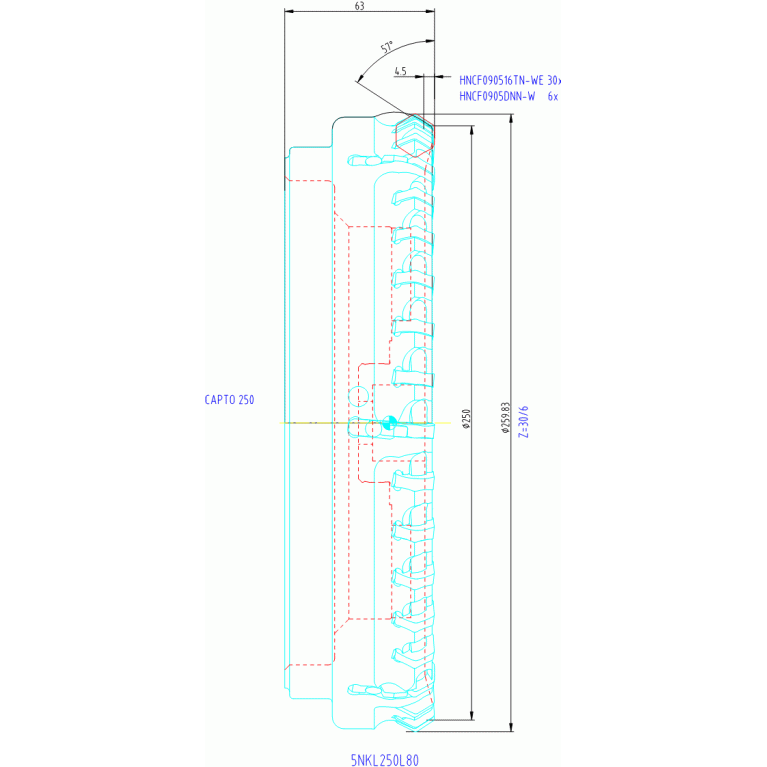

Главная Каталог продукции Toolunited 11 308-01 - Face milling cutter 5NKL250L80

5NKL250L80

Артикул: 3019683

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CDX Cutting depth maximum

7 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

250 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

260.1 mm

Delivery state

LH - Stocked

DHUB Hub diameter

222.4 mm

DIN

CCM25000103

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Rough / Finish Mill 5NKL...R/L80

HAND Cutting direction

L - Left

ID Technical product number

3019683

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

57 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-03 CCTMS Connection code type

CCM Coromant Cap Mounting SANDVIK

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2500

LOC-03 DCONMS Diameter

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCM25000103

Name Identifying order number

5NKL250L80

OAL Overall length

80 mm

Working process

No working processes available

WT Weight of item

10.5 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
