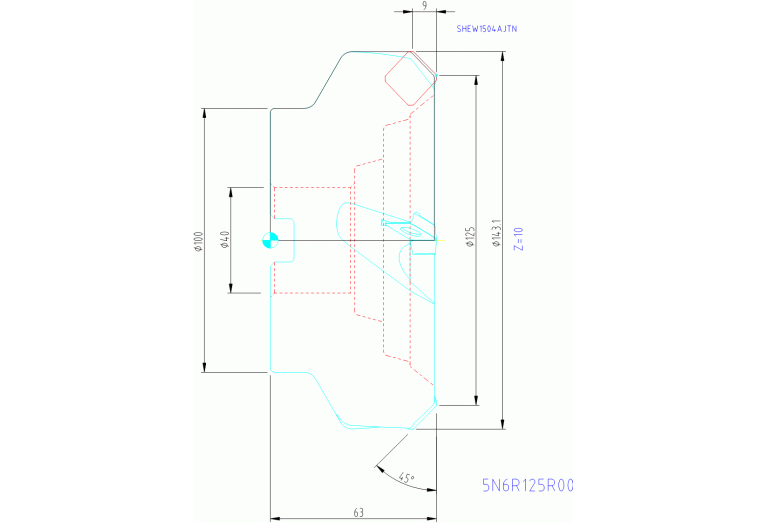

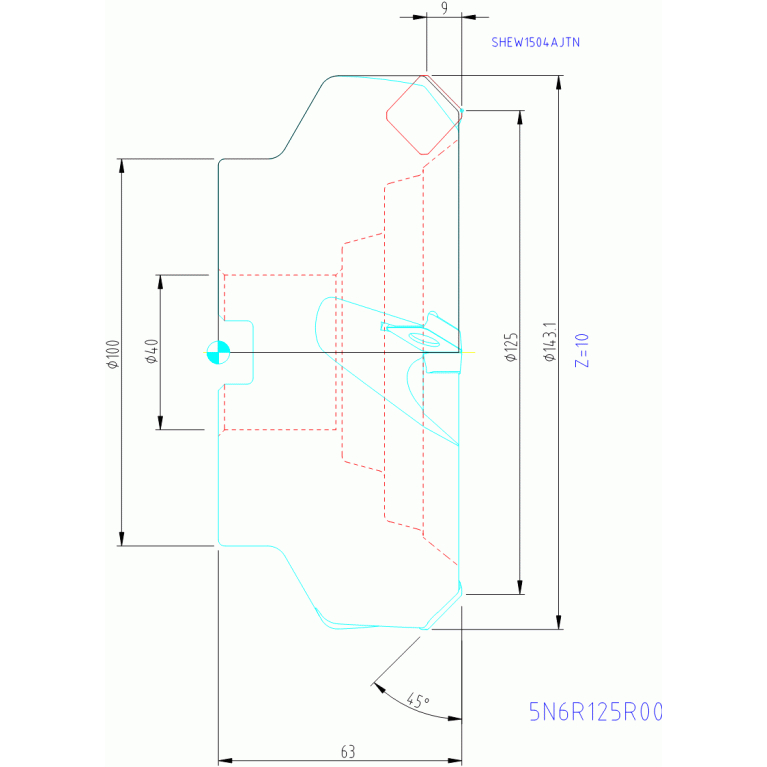

Главная Каталог продукции Toolunited 11 308-01 - Face milling cutter 5N6R125R00

5N6R125R00

Артикул: 3066234

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CDX Cutting depth maximum

9 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

125 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

143.1 mm

Delivery state

LH - Stocked

DHUB Hub diameter

100 mm

DIN

FDA04001210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face Mill 5N6R

HAND Cutting direction

R - Right

ID Technical product number

3066234

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-01 - Face milling cutter

KAPR Tool cutting edge angle

45 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04001210

Name Identifying order number

5N6R125R00

OAL Overall length

65 mm

Working process

No working processes available

WT Weight of item

4.21 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
