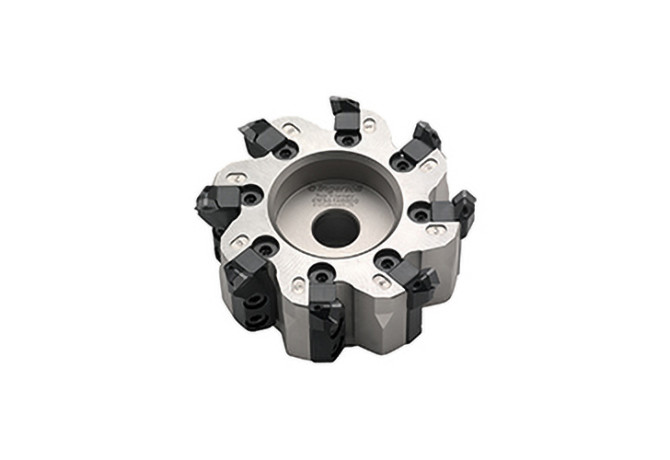

Главная Каталог продукции Toolunited 11 308-01 - Face milling cutter 4W3A315R00

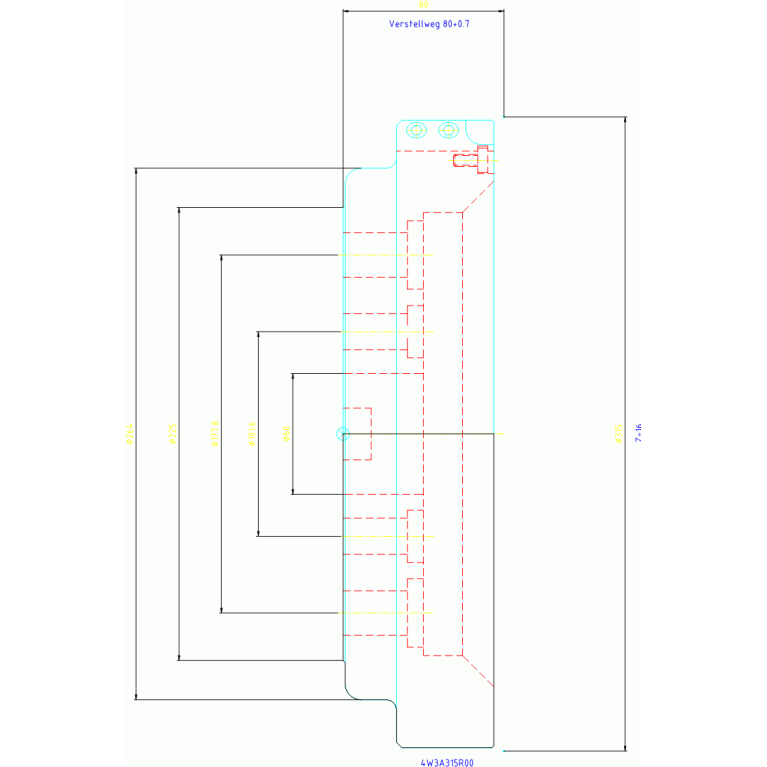

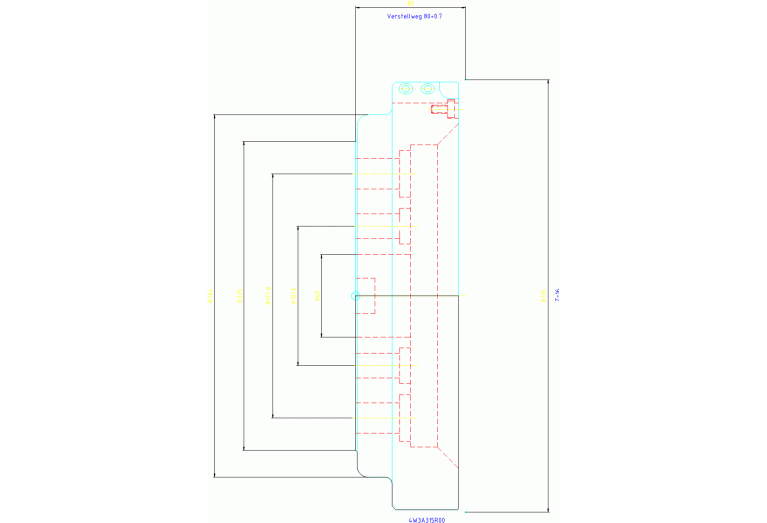

4W3A315R00

Артикул: 3080281

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

315 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DHUB Hub diameter

225 mm

DIN

SPK06000500

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Cartridge Mill 4W3A

HAND Cutting direction

R - Right

ID Technical product number

3080281

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

SPK Spindle nose mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0600

LOC-03 DCONMS Diameter

60 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SPK06000500

Name Identifying order number

4W3A315R00

OAL Overall length

80 mm

Working process

No working processes available

WT Weight of item

23.1 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
