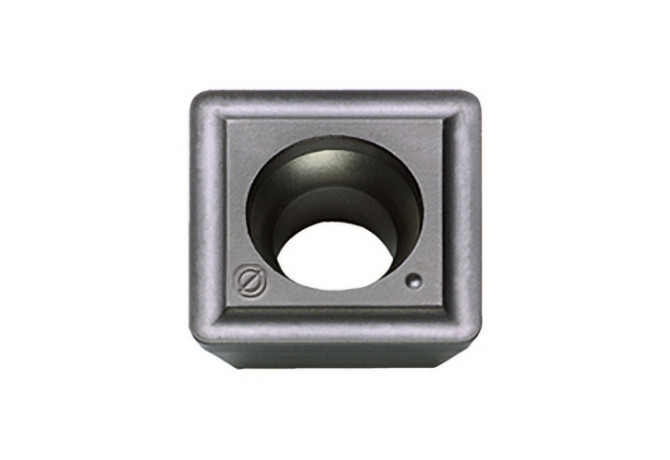

SPLT140512N-PH IN6520

Артикул: 5101037

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiCN+AI203+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.4 mm

Delivery state

LH - Stocked

DIN

SP1405 3N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, four-edged, positive geometry with R1,2

GRD2ND Standard designation of the grade 2nd application

M25-M40

GRD3RD Standard designation of the grade 3rd application

K20-K50

GRDMFG Grade manufacturers designation

IN6520

GRDPRIO Standard designation of the grade main application

P25-P45

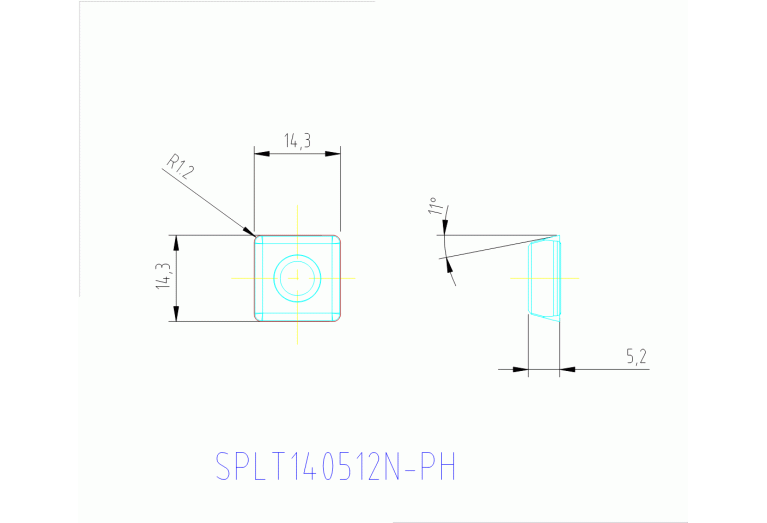

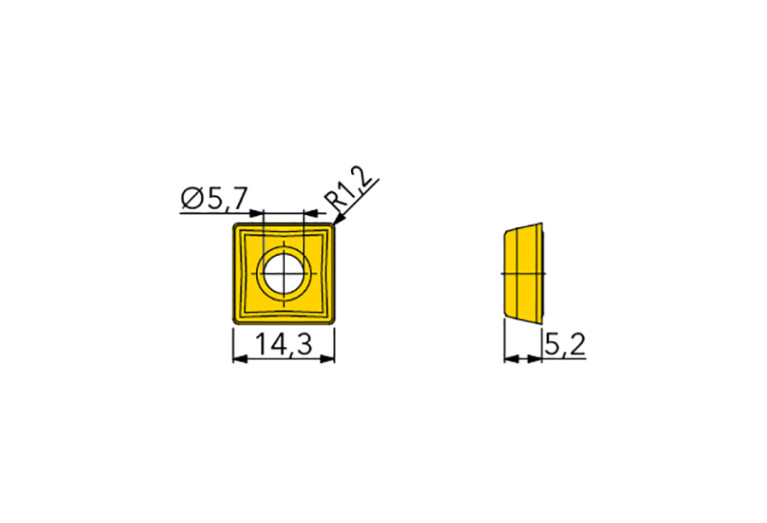

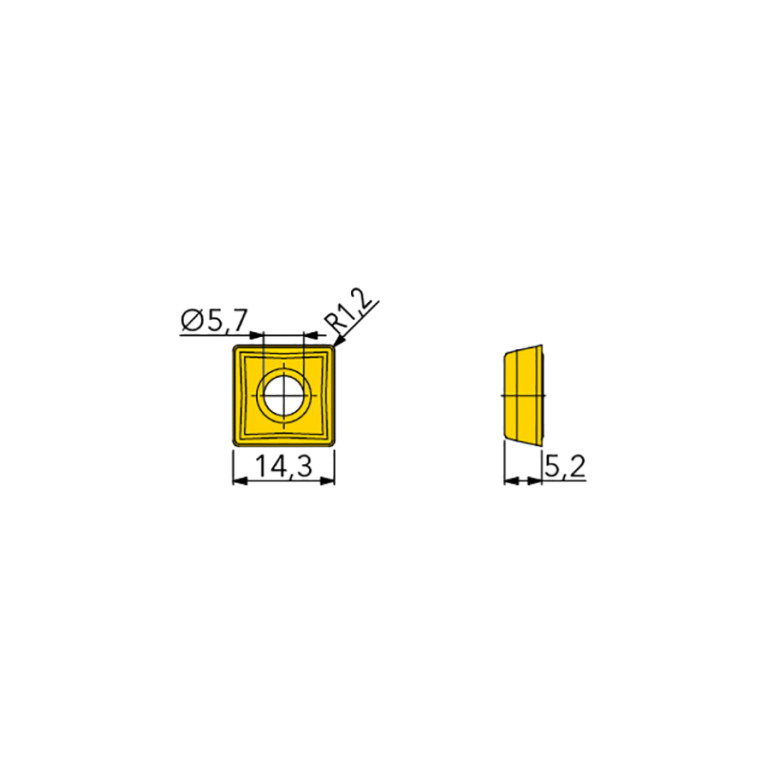

IC Inscribed circle diameter

14.3 mm

ID Technical product number

5101037

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

11.9 mm

LE Cutting edge effective length

13.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1405 3N

Name Identifying order number

SPLT140512N-PH IN6520

RE Corner radius

1.2 mm

S Insert thickness

5.2 mm

S1 Insert thickness total

5.2 mm

STDDES Standard designation

SPLT140512

TCINS Tolerance class insert

Working process

BVB - Drilling,FNB - Slotting,FNU - Groove milling,SPL - Spot facing
