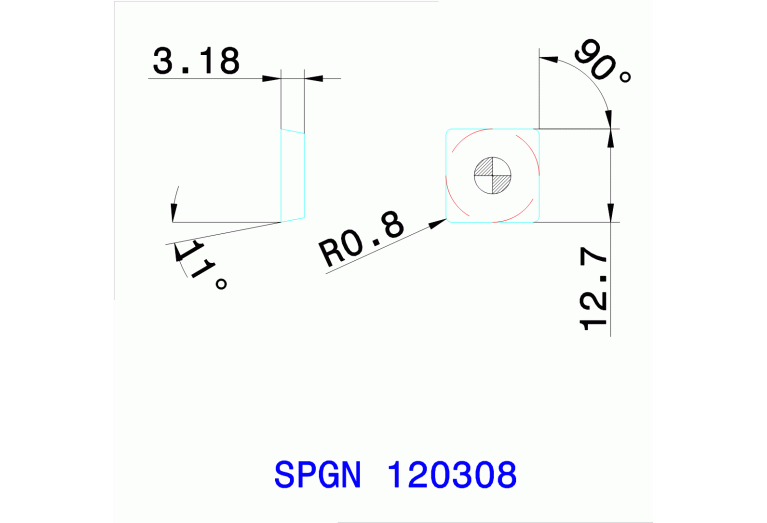

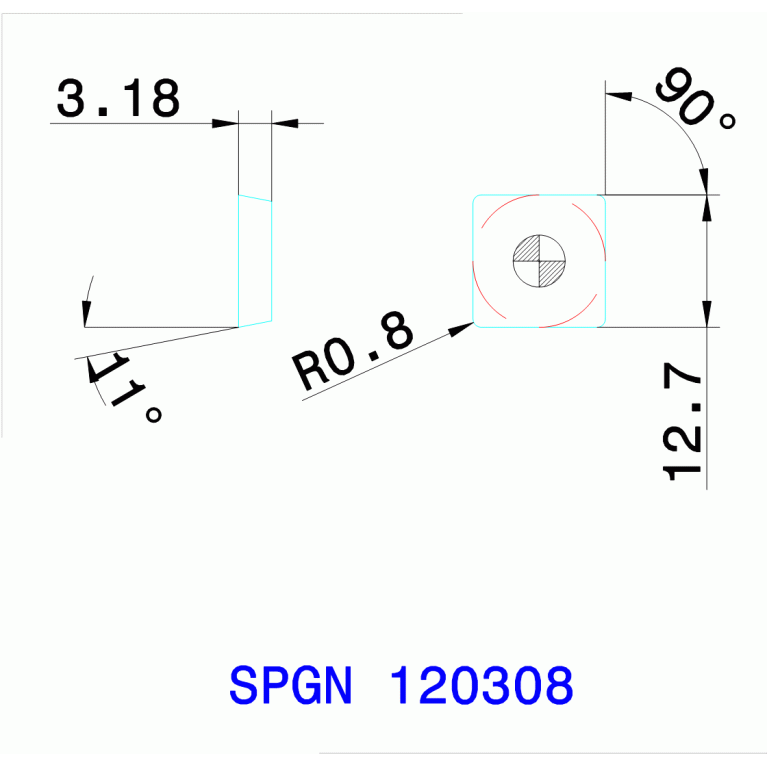

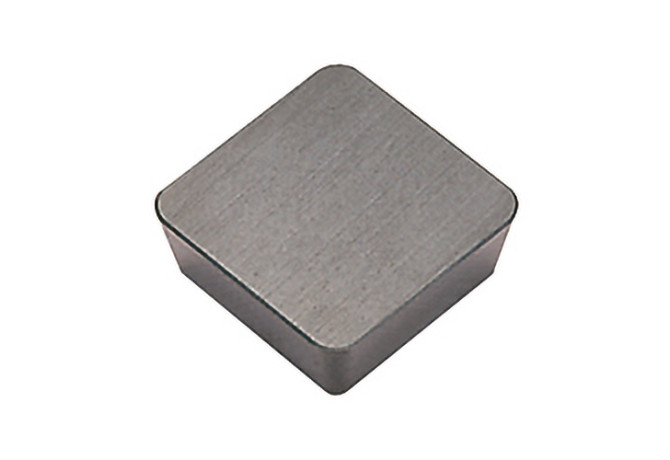

SPGN 120308 AB30

Артикул: 5700627

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

Keramik

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

SP1203081N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Positive 90° Ceramic Insert - 11° clearance

GRD2ND Standard designation of the grade 2nd application

K05-K15

GRDMFG Grade manufacturers designation

AB30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5700627

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

11.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203081N

Name Identifying order number

SPGN 120308 AB30

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPGN120308

STDDESAnsi Standard designation ANSI

SPGN422

TCINS Tolerance class insert

Working process

No working processes available
