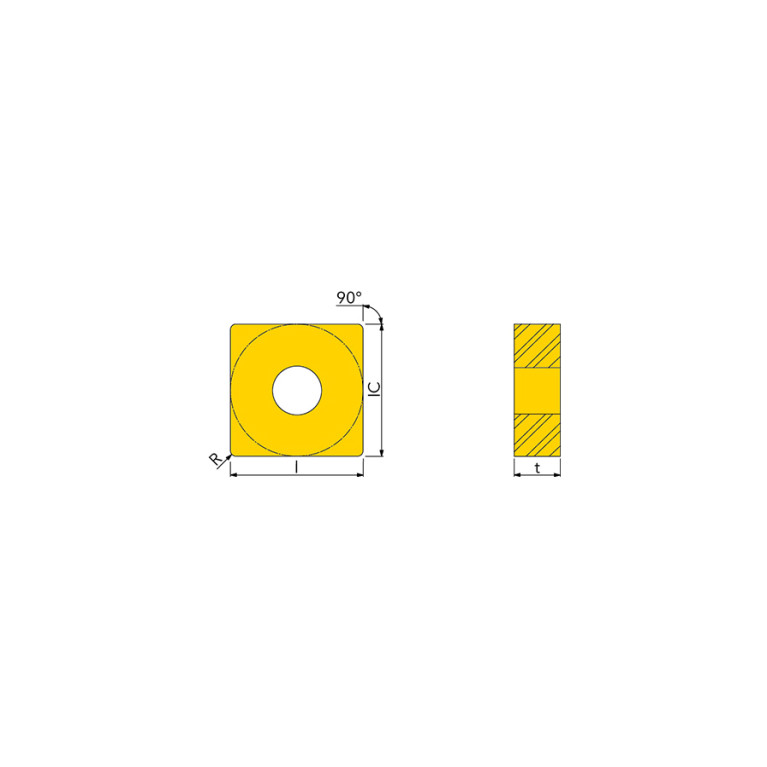

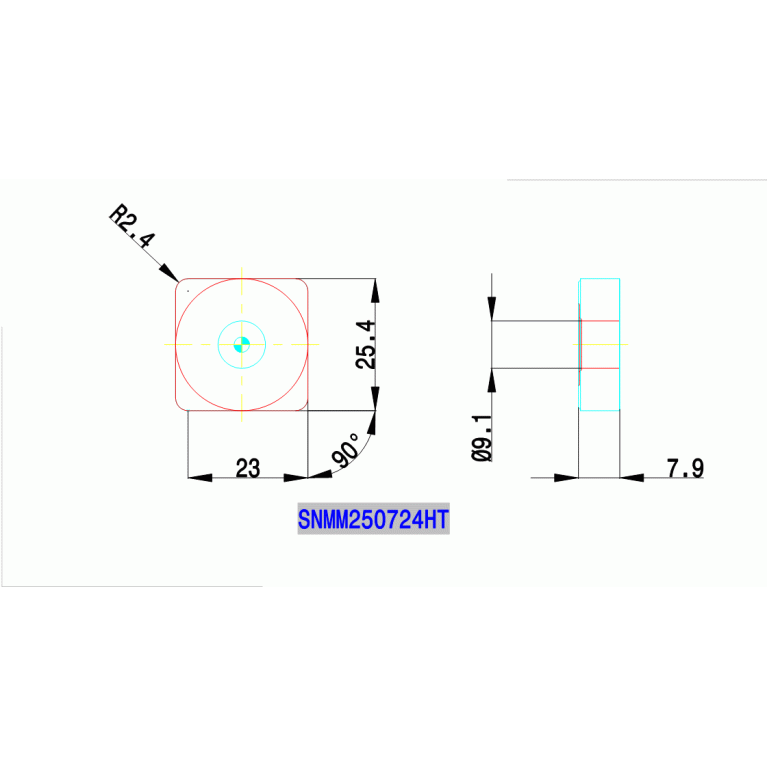

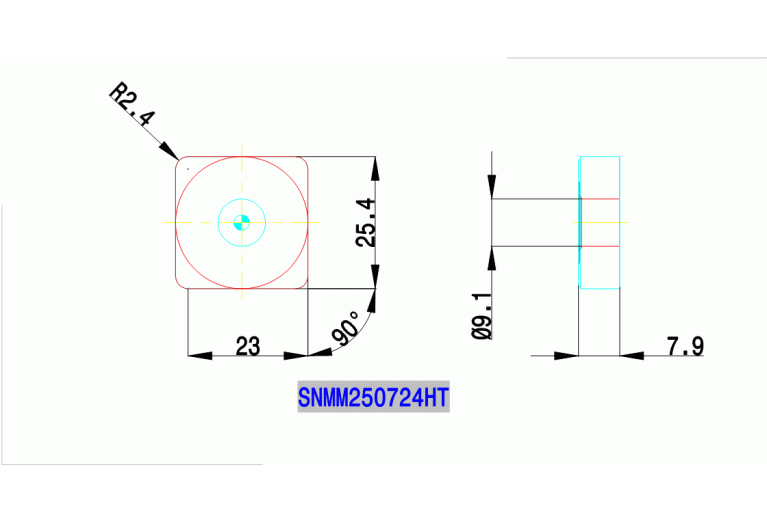

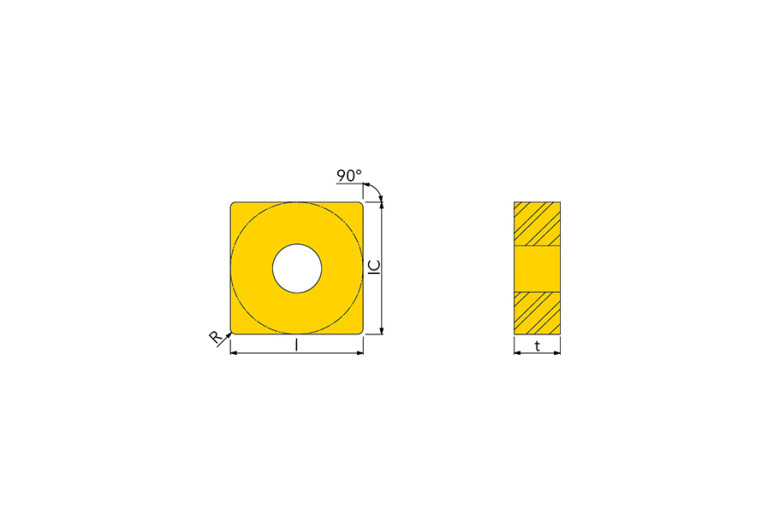

SNMM 250724 HT TT8115

Артикул: 5518664

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

SN2507242N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Negative 90° square inserts for heavy roughing

GRDMFG Grade manufacturers designation

TT8115

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

25.4 mm

ID Technical product number

5518664

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

23 mm

LE Cutting edge effective length

8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507242N

MIID Master insert identification

SNMM250724 TT8115

Name Identifying order number

SNMM 250724 HT TT8115

RE Corner radius

2.4 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

STDDES Standard designation

SNMM250724

STDDESAnsi Standard designation ANSI

SNMM856

TCINS Tolerance class insert

Working process

No working processes available
